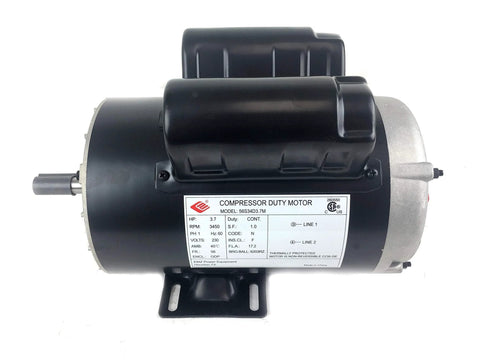

3.7HP Single-Phase Compressor Duty Motor, 56 Frame
✔️ CCW rotation, 56 frame, 3450 RPM, 5/8 inch shaft, 230V

This 3.7 HP, single-phase motor is designed to drive belt-driven air compressors in dry indoor environments. It replaces 5 HP SPL motors when the full-load amp rating is between 15 and 17 A at 230V. Key specs include 56-frame size, 3450 RPM, 5/8 inch keyed shaft length of 2.25 inches, and an Open Drip Proof enclosure for safe indoor use.

✅ 3.7 HP compressor duty motor, single-phase, 56 frame
✅ CCW rotation, viewed from shaft end
✅ 2.25 inch shaft length, 5/8 inch shaft diameter, keyed shaft
✅ 230V, 60Hz, 1.0 service factor, Open Drip Proof enclosure
✅ 46 lb weight, 1-year warranty

💡 What is a single-phase compressor motor used for in air compressor systems? Here's a handy breakdown:
- Handy for replacing worn SPL motors in belt-driven compressors with 230V supply
- Provides compatible 60Hz operation and 1.0 service factor for durable performance
- Ideal for 56-frame, CCW-rotating motors at 3450 RPM in dry indoor environments
