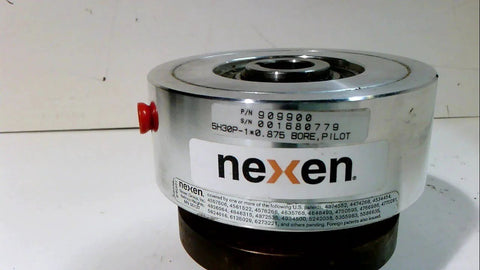

Nexen 909900 5H30P Pilot Mount Tooth Clutch, Air Engaged

Nexen 909900 5H30P Pilot Mount Tooth Clutch with Air Engage
✔️ Bore 0.875 in (22.23 mm), 1850 in-lb torque, 3700 rpm, 91 positions

Designed as a compact air-engaged clutch for pilot-mount shafts, this unit excels in inline conveyors and automated lines where reliable positive engagement and directional control are critical. It accepts standard pulleys, sprockets, and couplings via its pilot mount and supports single and double flex shaft couplings for flexible installations.

✅ Bore size: 0.875 in (22.23 mm)
✅ Max static torque: 1850 in-lbs (208.6 N·m)
✅ Max speed: 3700 rpm
✅ Engagement positions: 91
✅ Air engaged, spring released
✅ Pilot mount accepts pulleys, sprockets, couplings
✅ Single and double flex couplings available
✅ Positive engagement without slippage
✅ Ideal for inline zoned conveyors and bi-directional movement

💡 What is an air-engaged clutch used for in automation?

- Handy for quick, positive engagement in conveyors - Enhances cycle speed and reduces wear with air actuation - Works with pilot mounts to accept pulleys, sprockets, and couplings - Ideal for inline zoned conveyors and bi-directional systems
