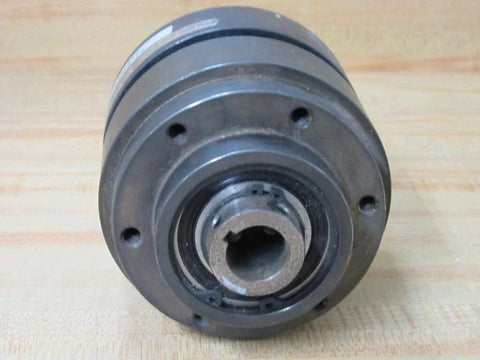

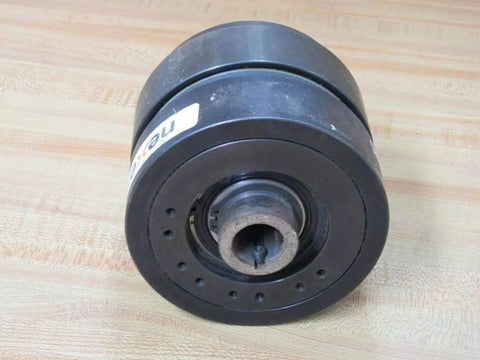

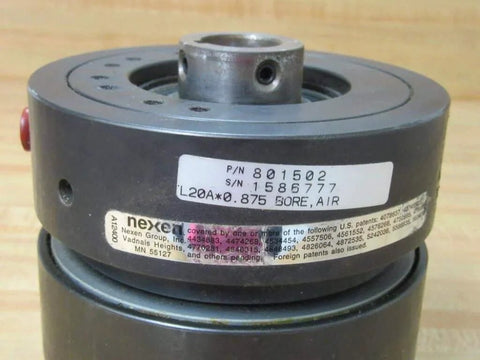

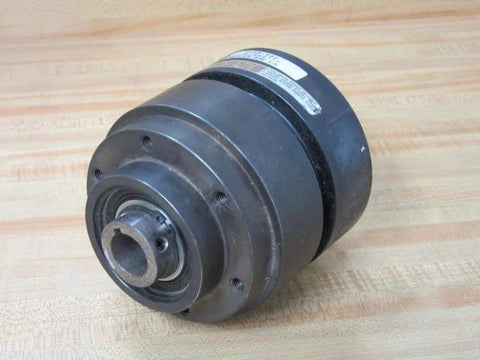

Nexen Group 801502 Air TL-A Torque Limiter

Nexen Group 801502 TL-A Air Torque Limiter - 0.875in Bore, Remote Torque Adjustment, Proximity Sensor for automation line protection
✔️ Nexen TL-A air torque limiter, 0.875in bore, 860 in-lb max torque

The Nexen Group 801502 TL-A Air Torque Limiter is a set-screw mounted, open-design torque limiter used to control load torque in automation systems. This listing is for a single unit, ideal for conveyors, presses, packaging lines, and robotic feeders where precise, remote-adjustable torque control helps prevent motor overcurrent and gear damage. The TL-A series features multiple models (16 options) with both high- and low-torque versions, plus remote adjustment and a built-in proximity sensor for easy integration.

✅ Bore: 0.875 in (22.225 mm); TL-A series, set screw mounted, open design
✅ Maximum static clutch torque: 860 in-lb (97.0 Nm)
✅ Minimum static clutch torque: 210 in-lb (23.7 Nm)
✅ Engagement: 1 position at 360°
✅ Operating speed: up to 2000 rpm
✅ Torque capacity: up to 27,700 in-lb at 80 psi (3,132 Nm at 80 psi)
✅ Bore size range: 0.625-2.938 in (15.9-74.6 mm)
✅ Remote torque adjustment: Single and Double air pressure circuits
✅ Proximity sensor included with 3 ft cord and mounting hardware
✅ Part/series: TL-A; many models available (high torque and low torque variants)
✅ This listing is for a single unit 💡 What is an air torque limiter and how does the TL-A series protect automated machinery? This quick overview explains the core idea and benefits. - Provides overload protection by slipping at a set torque to shield motors and gears - Allows remote torque adjustment via air pressure circuits - Suits conveyors, presses, packaging lines, and robotic feeders - Helps reduce downtime and wear in high-speed automation This setup is handy for protecting motors and gear trains in automation.
