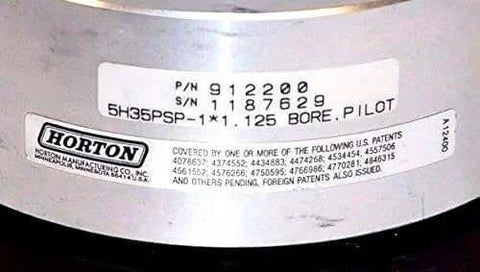

Nexen Horton 912200 Tooth Clutch 5H35Psp-1 1.125 Bore

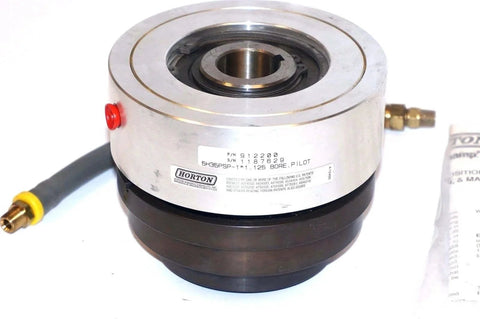

Nexen Horton 912200 Tooth Clutch, 1.125 in bore, single unit
✔️ 1.125 in bore; 2450 in-lbs static torque; 3200 rpm max; air engaged

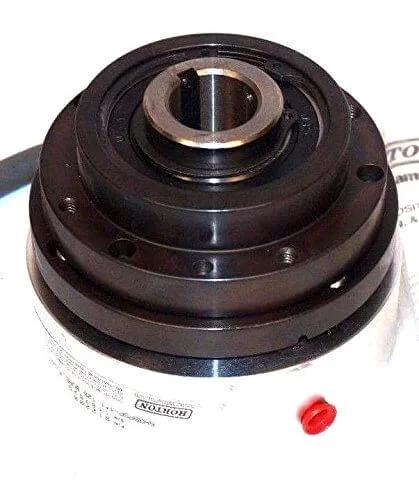

✅ Bore: 1.125 in (28.6 mm)
✅ Maximum static clutch torque: 2450 in-lbs
✅ Max RPM: 3,200 rpm
✅ Operating speed up to 3,700 rpm
✅ Instantaneous torque: up to 32,000 in-lbs @ 80 psi
✅ Engagement positions: 1 at 360 degrees for positive registration
✅ Bore sizes: 13 bore options from 0.875 to 2.938 in (22.2-74.6 mm)
✅ Mounting options: pilot mount with tapped holes; thru-shaft full-length keyway
✅ Sealed radial ball bearings for durability
✅ Inline use with single/double flexible couplings to handle misalignment
✅ Pulley, sprocket, or gear mounting on clutch
✅ Hose included: 8.25 in long
✅ Air-engaged, spring-released operation

💡 What is an air-engaged tooth clutch used for in precision drive systems?

Air-engaged clutches provide positive engagement and precise timing for repeatable positioning in automated lines. - Delivers reliable torque transfer with minimal slip during operation - Handy for inline drives when used with flexible couplings to absorb misalignment - Sealed radial bearings improve longevity in tough environments - Mounts pulley, sprocket, or gear for flexible configurations
