Nachi

NJ219 Nachi Cylindrical Bearing Steel Cage Japan 95x170x32 Bearings


$465.29
SKU: Kit10199
UPC: 00193019086797
Item: NJ219 Cylindrical Roller Bearing
Type: Nachi Cylindrical Roller Bearing
Cage: Steel Cage
Dimensions: 95mm x 170mm x 32mm/Metric
ID (inner diameter)/Bore: 95mm

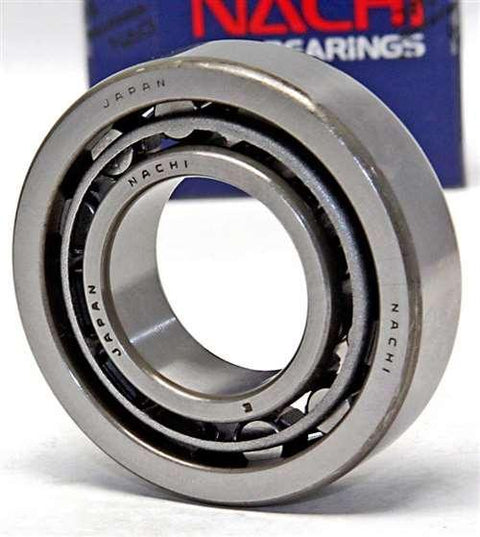

NJ219 Nachi Cylindrical Roller Bearing
Steel Cage
95mm x 170mm x 32mm
Made in Japan


NJ219 Nachi Cylindrical Roller Bearing, Steel Cage, Made in Japan, the NJ219 inner diameter is 95mm, the NJ219 outer diameter is 170mm, NJ219 width is 32mm.

  • Item: NJ219 Cylindrical Roller Bearing
  • Type: Nachi Cylindrical Roller Bearing
  • Cage: Steel Cage
  • Dimensions: 95mm x 170mm x 32mm/Metric
  • ID (inner diameter)/Bore: 95mm
  • OD (outer diameter): 170mm
  • Width/Height/thickness: 32mm
  • Size: 95 x 170 x 32 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 165,000 N
  • Static load rating Cor: 195,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,800 RPM
    • Oil Lubrication: 4,500 RPM
  • Made in Japan

Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
