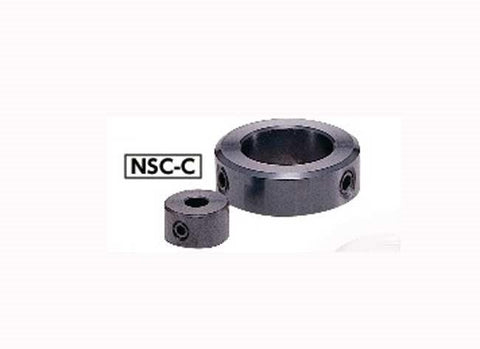

NSC-15-8-C NBK Set Collar - Set Screw Type - Steel NBK Ferrosoferric Oxide Film Pack of 1 Collar Made in Japan
NSC-15-8-C NBK Set Collar - Set Screw Type - Steel NBK Ferrosoferric Oxide Film Pack of 1 Collar Made in Japan
NBK

NSC-15-8-C NBK Set Collar - Set Screw Type - Steel NBK Ferrosoferric Oxide Film Pack of 1 Collar Japan Made


$66.61 CAD $89.92 CADyou save $23.31 CAD
SKU: NSC-15-8-C-NBK
UPC: 0
Item: NSC-15-8-C
Set Collar - Set Screw Type - Steel
Quantity : One Collar
NBK - Made in Japan


NSC-15-8-C NBK Set Collar - Set Screw Type - Steel NBK
Main body Black (Ferrosoferric Oxide Film S45C)
One Collar
NBK - Made in Japan

Characteristics:
  • Standard type set collar.
  • It is attached to the shaft by the set screws.
  • Chamfer on one side end face is larger (bore diameter 8 mm or above).
  • This avoids interference of the set collar with the external wheel when the bearing is fixed..

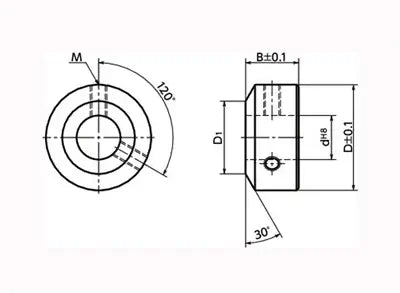

Part Number d B D D1 M* 1
NSC-15-8-C-NBK 15mm 8mm 25mm 24mm
M5
＊1: If d dimension is 6 or below, one point.
