OEM Everflo 2.2 GPM, 12 Volt, 70 PSI, Diaphragm Pump EF2200, EF2200-BOX, EF2200BOX

OEM Everflo EF2200 2.2 GPM 12V Diaphragm Pump - 70 PSI, 3/8" NPT Ports for Agricultural Spraying
✔️ 2.2 GPM @12V, 70 PSI max; 3/8" NPT ports (9.5 mm); self priming to 10 ft; max fluid temp 140°F; includes EF2200 pump and installation manual.

The Everflo EF2200 diaphragm pump is a compact, reliable 12V pump designed for spraying nonflammable liquids, typically used in agricultural sprayers, irrigation systems, and small processing setups. Its sturdy build and easy mounting make it a handy solution for mobile or fixed spray rigs.

✅ Maximum Pressure: 70 PSI
✅ Open Flow: 2.2 GPM
✅ Voltage: 12 VDC
✅ Maximum Amp Draw: 8.0 A

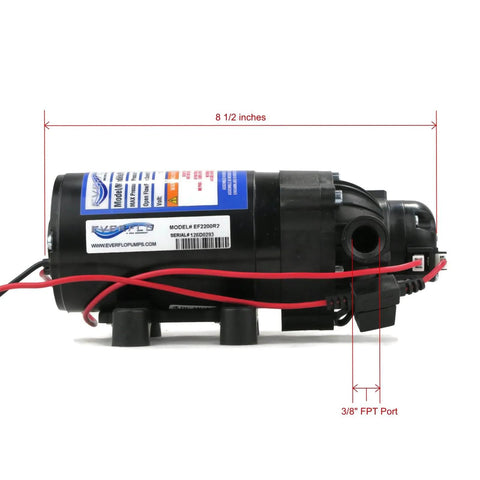

✅ Port Type: 3/8" NPT (9.5 mm) ports
✅ Maximum Fluid Temperature: 140°F
✅ Self Priming: up to 10 ft
✅ Mounting: Standard pattern; can be installed in any position
✅ Included: One EF2200 diaphragm pump with 3/8" NPT ports and installation manual
✅ Pack Size: 1 unit
💡 What is a 12V diaphragm pump best used for in agricultural spraying and similar applications? A quick overview: - Delivers up to 2.2 GPM at up to 70 PSI for steady spray performance - Operates on 12 VDC with a moderate current draw suitable for battery-powered setups - Uses standard 3/8" NPT ports for easy plumbing with common fittings - Self-priming up to 10 ft and can be mounted in any orientation for flexible installations This handy configuration helps ensure reliable spray performance in field work.
