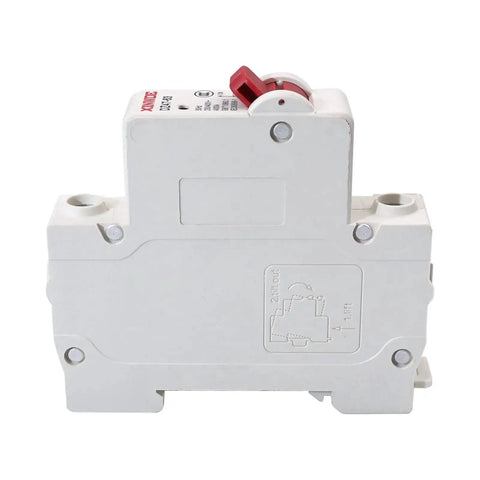

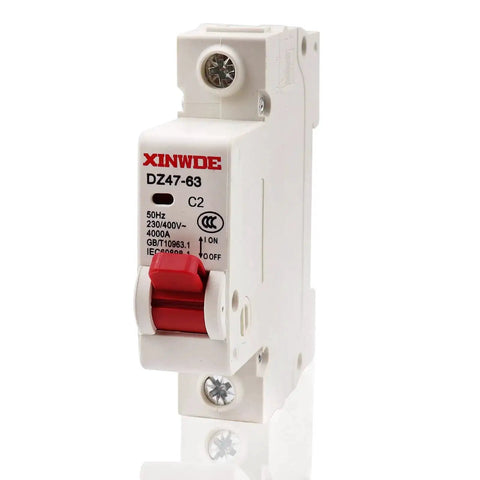

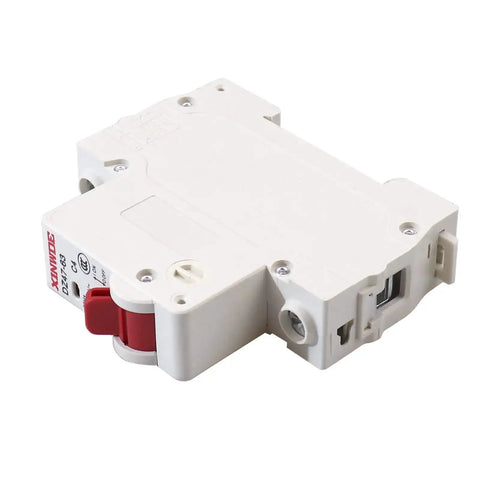

One-Pole 2A Miniature Circuit Breaker For Home Circuits, 230V/400V, DIN Rail Mount DZ47-63, Short-Circuit And Overload Protection, Screw-Clamp Wiring, Reliable Control And Isolation For Residential Panels

One-Pole 2A DIN Rail Breaker for 230V/400V use (1x)
✔️ 1-pole 2A, 230/400V, 50Hz, screw-clamp, 35mm DIN rail

Compact one-pole circuit breaker designed for home panels and equipment enclosures. It provides short-circuit and overload protection for 50/60Hz AC systems and snaps onto a 35 mm DIN rail for easy residential installation.

✅ Rated voltage: 230V/400V
✅ Rated current: 2A
✅ Breaking capacity: 4kA
✅ Trip type: Thermal-magnetic (5 to 10x rated current)

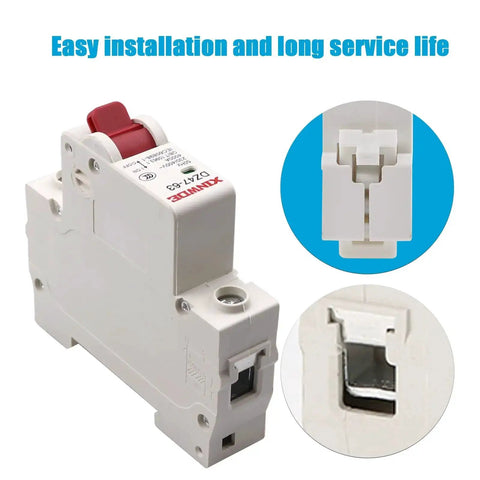

✅ Mounting: Screw-clamp wiring, 35mm DIN rail
✅ Housing & contacts: Flame retardant shell; silver alloy contacts
✅ Indicator lights: Green OFF, Red ON
✅ Life expectancy: Mechanical 4000 cycles, Electrical 4500 cycles, Arc 10000

💡 What is a 1-pole miniature circuit breaker used for?

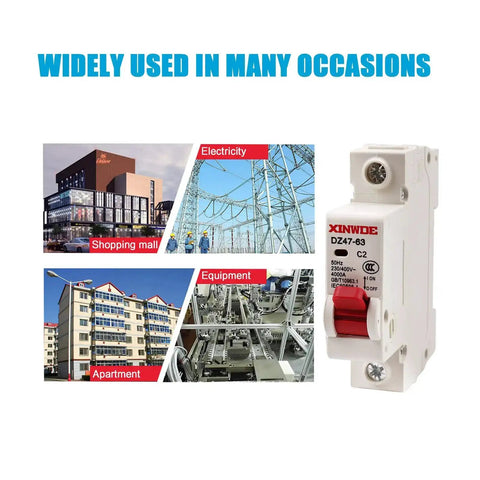

This handy device protects wiring and equipment by interrupting fault currents. - Handy for residential panels and small equipment setups
- Protects circuits from short circuits and overloads
- DIN rail mounted for fast, clean panel installation
- Clear ON/OFF indication helps safe operation
