Optical Fiber Amplifier Sensor Photoelectric Switch With NPN PNP Outputs NO NC Adjustable High Sensitivity Light On Dark On Mode Fast Microsecond Response Four Element Red LED For Area Detection And Automatic Sensitivity Tracking BS P22
UPC:
✔️ NPN/PNP outputs, light/dark mode, 0.1ms to 9.999ms delay, 12 to 24 V

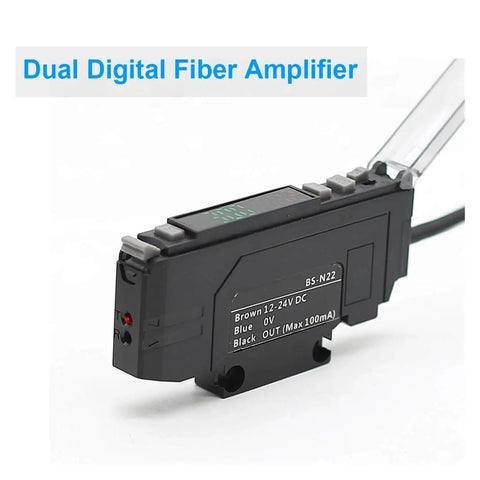

The BS-N22 fiber optic photoelectric amplifier is a compact sensor module designed to work with simple diffuse or through beam fiber optic sensors. It provides area detection with automatic sensitivity tracking, making it a handy choice for conveyors, packaging lines, and automated cells where precise sensing matters. This unit runs on a 12 to 24 V DC supply and supports both NPN and PNP wiring configurations.
✅ 24 V DC power supply range: 12-24 V DC ±10%, ripple ≤ 10%
✅ Outputs: NPN open collector or PNP open collector, max 100 mA, residual voltage ≤ 1 V
✅ Detection: four element red LED for reliable area sensing with auto sensitivity tracking

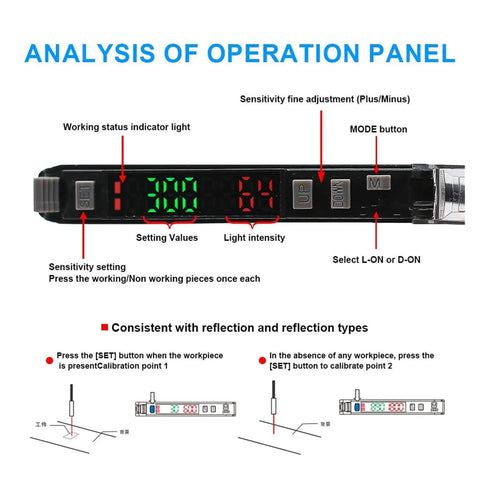

✅ Switching: light-on or dark-on mode selectable
✅ Response: P1 100 μs, P2 200 μs
✅ Delay options: off, on, on delay, single timer; 0.1 ms to 9.999 ms, ±10% accuracy

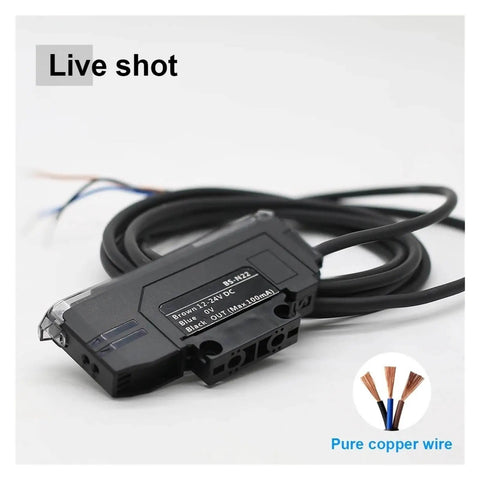

✅ Size and wiring: 30.5 mm tall × 10 mm wide × 75.2 mm deep; 2 m cable length
💡 What is a fiber optic photoelectric amplifier used for in automated sensing systems? This handy device boosts signals from fiber optic sensors to drive controllers in industrial setups.
- handy for joining fiber optic sensors to control logic in production lines
- supports both NPN and PNP outputs for flexible machine wiring
- offers light-on and dark-on switching to match existing control schemes
