Outdoor Photoelectric Switch Auto Lights No Fuss Dusk To Dawn Sensor For Hardwired Exterior Lamps Post Eye Style Light Control Button Weatherproof Sensor For Porch Backyard Garage Exterior Lighting
UPC:
✔️ Dusk-to-dawn switch for single outdoor lamp with sensor
The photoelectric lamp controller is a weatherproof, line-control device that automates exterior lighting by sensing ambient brightness. It's ideal for porch, backyard, garage, and other outdoor fixtures that need automatic dusk-to-dawn operation.
✅ Rated voltage: 120V; 105-130VAC range; 50/60Hz
✅ Rated load: 1.5A; No-load power: 1.2A max
✅ On/off illumination: 10-20 LUX ON, 30-60 LUX OFF
✅ Anti-interference delay: 20-120s
✅ Ambient temperature: -40°C to +70°C; Relative humidity: 95%

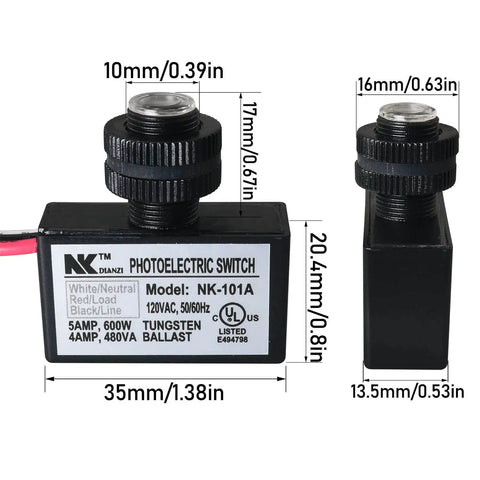

✅ Dimensions: 35.20 L x 13.60 W x 20.50 H mm (1.39 x 0.54 x 0.81 in)
✅ Probe size: 10x17 mm; Lead length: 180 mm
✅ Certification: ANSI C136.10; UL & CUL (E494798); Use: 5000 cycles
| Dimension | Metric | Imperial |
|---|---|---|
| Overall | 35.20 x 13.60 x 20.50 mm | 1.39 x 0.54 x 0.81 in |
| Probe | 10 x 17 mm | 0.39 x 0.67 in |
| Lead length | 180 mm | 7.1 in |

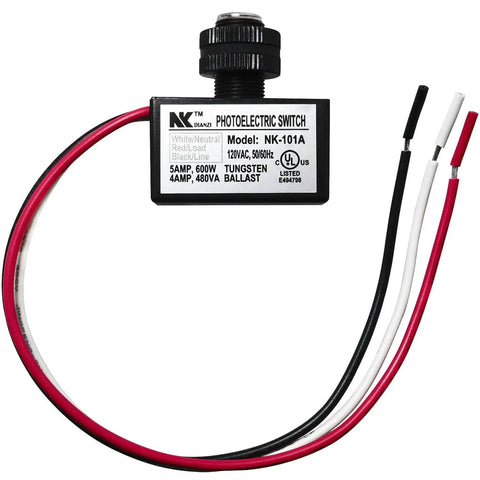

The NK101A photoelectric light controller automatically switches exterior lighting on at dusk and off at dawn by sensing ambient brightness. It is designed for porch posts, driveways, garages, and other outdoor fixtures where automatic dusk-to-dawn operation helps with safety and energy efficiency.
💡 What is a dusk-to-dawn outdoor light controller and how does a photoelectric switch work for exterior lighting?
This handy device uses ambient light to automatically manage exterior lighting. - Detects ambient light and turns lamps on at dusk - Turns lamps off at dawn to save energy - Supports 120V circuits and is weatherproof for outdoor use
