peristaltic Pump 24V 1500ml/min high Flow Intelligent Variable Speed 0.1-400rpm Liquid dosing Pump 3 rotors LED Screen RS485 7.9mm x 11.1mm (IDxOD)

Peristaltic Pump 24V High-Flow Intelligent Dosing Pump - 1500 ml/min, 3-Rotor, 0.1-400 rpm
✔️ 24V DC, 1500 ml/min max, 0.1-400 rpm, LED display, RS485

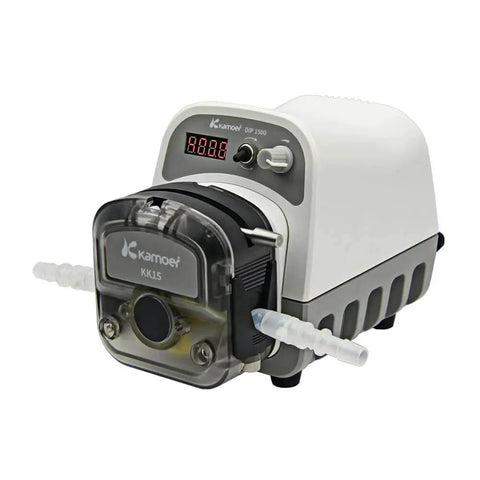

The DIP1500 intelligent peristaltic pump is a compact, high-flow dosing solution designed for labs, biopharma, chemical processing, and manufacturing lines. It uses a precise long-life stepper motor, a three-rotor head for smooth flow, and a bright LED display to show real-time speed and flow. This handy unit supports multiple control methods and cycle modes for hands-on testing or fully automated processes, with built-in power-failure memory to resume work without reprogramming.

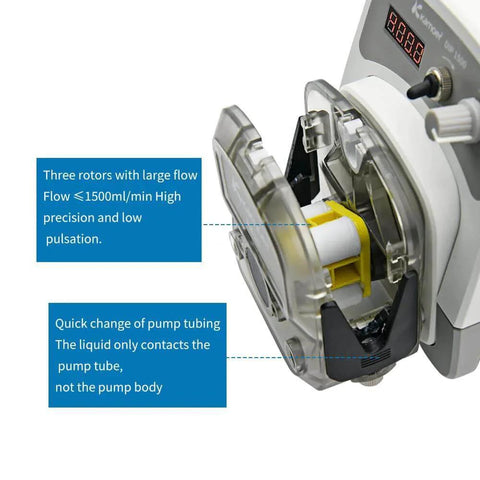

✅ Flow up to 1500 ml/min at 24V DC; speed range 0.1-400 rpm with a 3-rotor head
✅ LED digital display shows real-time speed and flow rate
✅ Standard silicone tube S18# 7.9 mm ID x 11.1 mm OD (0.31 in ID x 0.44 in OD); easy tube replacement; lifetime ~200 h

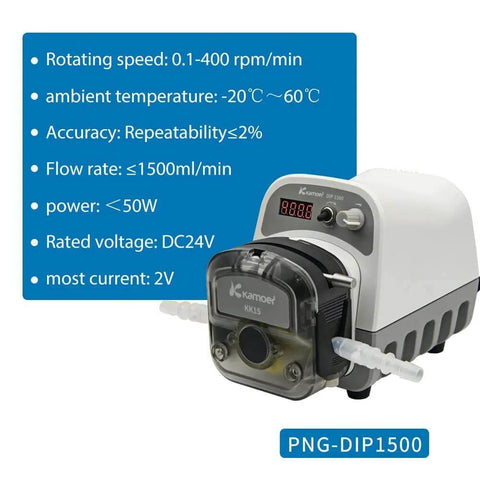

✅ Power: DC24V, 2A; power consumption <50 W; weight ~1.7 kg; noise ≤65 dB

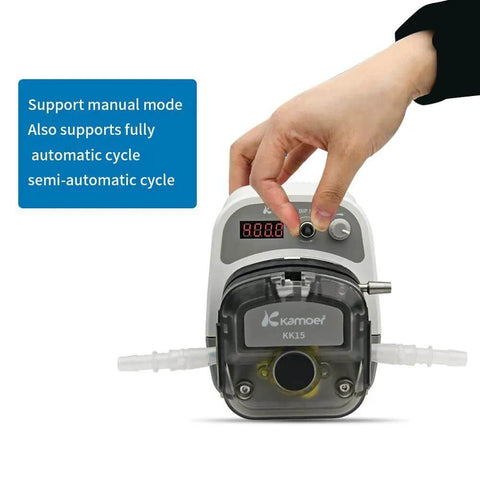

✅ Start/stop, reverse, calibration, reverse suction; supports auto, semi-auto, and manual cycle modes
✅ Precise stepper motor with 0.1 rpm resolution
✅ Multiple control methods: rotary encoder, foot switch, external analog (4-20 mA, 0-5 V), RS485 Modbus
✅ Power-failure memory stores last parameters to resume after outages
✅ Consumable-friendly design for quick tube changes and maintenance
💡 What is a high-flow peristaltic pump used for in laboratory dosing and process control? A handy overview to help you pick a pumping solution. - Provides precise, pulsation-free flow for chemical dosing and sample prep - With a wide 0.1-400 rpm range and up to 1500 ml/min, it handles varying viscosities - RS485 Modbus and analog outputs enable easy automation and integration - Power-failure memory keeps settings ready to resume after outages This setup delivers reliable, repeatable dosing in lab benches and production lines.
