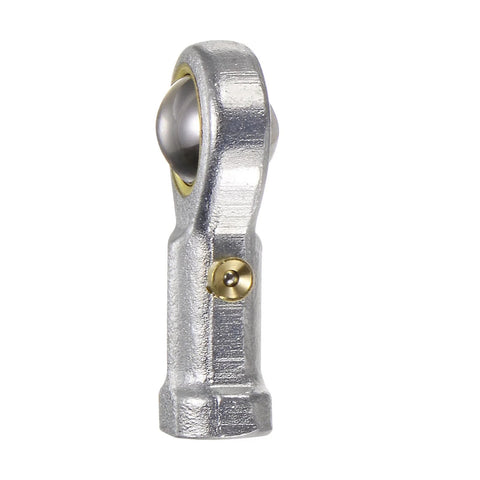

4 pcs PHSB3 female rod end bearing kit, 3/16 inch bore with #10-32 right hand thread, self lubricating joint rod ends with jam nuts, hardened bearing steel ball, zinc plated body for smooth motion in machinery and automation

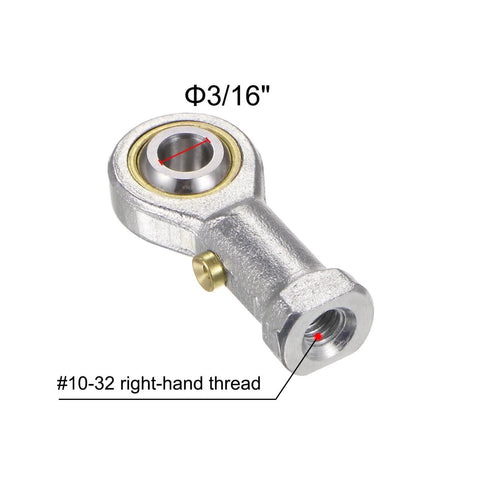

3/16 inch Female Rod End Bearing with Jam Nuts for Motion Control
✔️ #10-32 Right Hand Thread Self-Lubricating Heim Joint Set

This 3/16 inch female rod end bearing set is made for smooth, flexible motion in compact mechanical assemblies. It’s commonly used in automation equipment, hydraulic cylinders, and machine linkages where clean alignment, low noise, and steady load handling are needed.

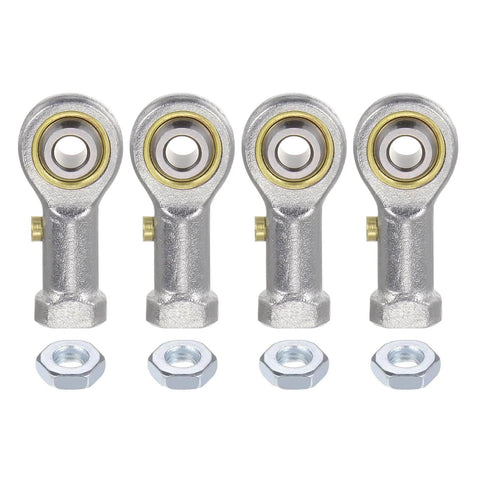

✅ Pack size: 4 pieces including female rod end bearings with matching jam nuts
✅ Rod end bore: 3/16 inch
✅ Thread size: #10-32 right hand
✅ Body material: #45 steel for strength and durability
✅ Ball material: Hardened bearing steel for long wear life
✅ Finish: Chromium-plated spherical surface with zinc-plated body
✅ Self-aligning design for smooth motion and reduced binding
✅ Low-noise operation with corrosion and wear resistance
✅ Maximum angular misalignment: 13 degrees
✅ Common uses: Hydraulic cylinders, forging machines, automation systems, and precision motion assemblies

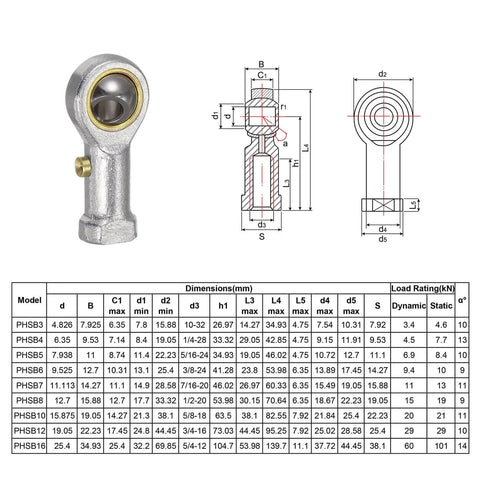

Dimensions
Bore diameter 3/16 inch
Thread size #10-32 RH

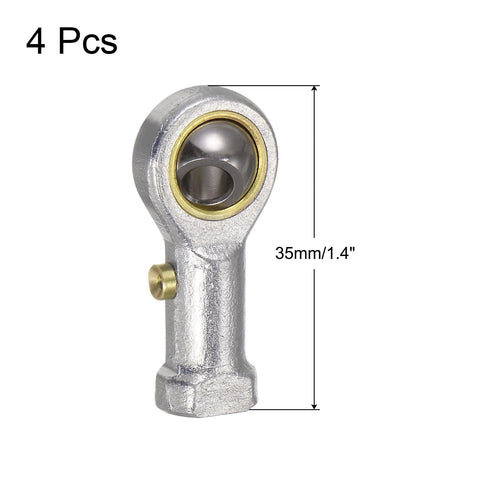

Overall length 1.4 inch

💡 Why are small female rod end bearings used in precision motion control systems?
They allow smooth articulation while keeping tight alignment in compact spaces.

• Self-aligning ball design helps prevent binding during angular movement

• Hardened bearing surfaces improve wear resistance under repeated motion

• Female thread style makes integration easy in rods and mechanical linkages

This rod end bearing set is a handy choice when you need quiet operation, smooth movement, and reliable performance in tight mechanical or automation applications.
