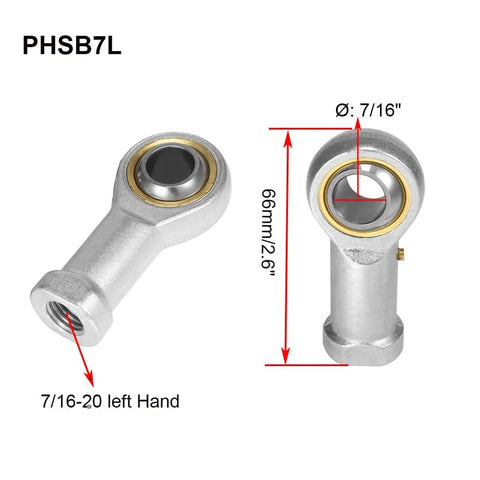

PHSB7L rod end bearing kit, 7/16 inch bore with 7/16-20 left hand female thread, self lubricating heim joint rod ends, forged steel body with hardened bearing ball, zinc plated for smooth motion in machinery and automation, 2 pcs

7/16 inch Female Rod End Bearing for Precision Motion Control
✔️ PHSB7L Left Hand 7/16-20 Self Lubricating Heim Joint 2 Pack

This 7/16 inch female rod end bearing set is designed for smooth, controlled motion in mechanical and automation systems. It’s commonly used in hydraulic cylinders, CNC equipment, and machinery linkages where low noise, reliable alignment, and steady load handling are important.

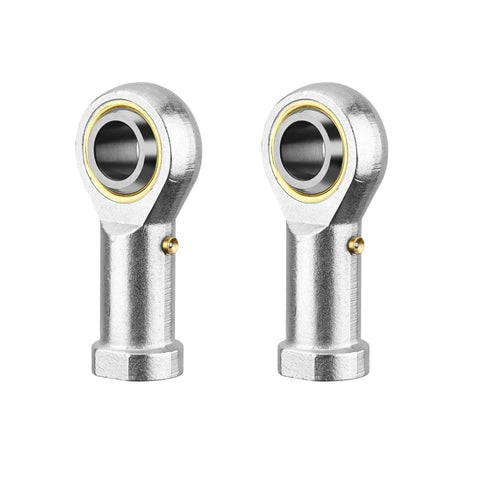

✅ Pack size: 2 female rod end bearings
✅ Rod end bore: 7/16 inch

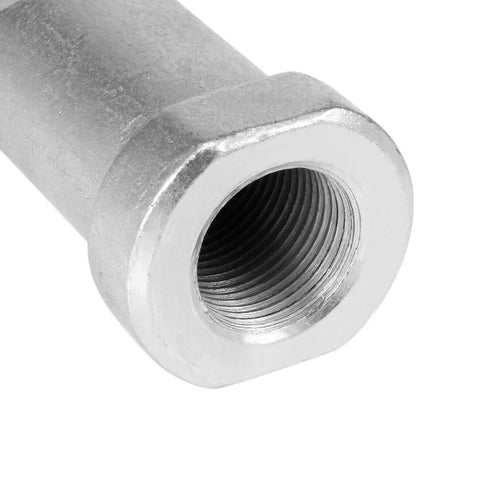

✅ Thread size: 7/16-20 left hand
✅ Body material: Forged #45 steel for strength and durability
✅ Ball material: Hardened bearing steel for wear and corrosion resistance

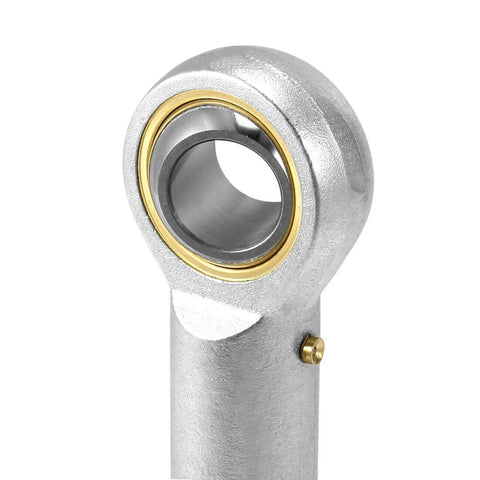

✅ Finish: Chromium-plated spherical surface with zinc-plated body
✅ Self-aligning design for smooth movement and reduced binding
✅ Low-noise operation with corrosion and wear resistance
✅ Maximum angular misalignment: 11 degrees
✅ Static load capacity: 13 kN
✅ Dynamic load capacity: 11 kN
✅ Common uses: Hydraulic cylinders, machinery linkages, automation systems, CNC equipment, and motion control assemblies

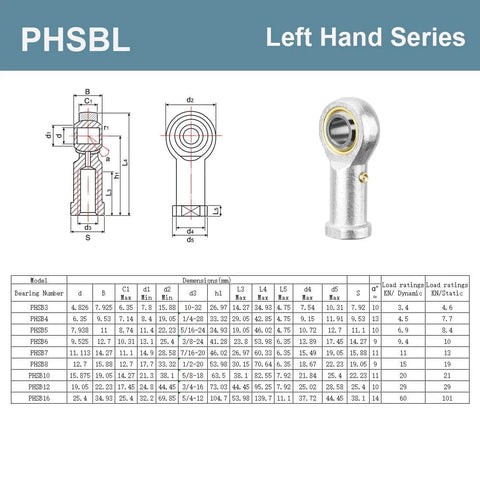

Dimensions
Bore diameter 7/16 inch
Thread size 7/16-20 LH
Max misalignment 11 degrees

💡 Why are left hand female self lubricating rod end bearings used in industrial motion control systems?
They allow precise adjustment and smooth articulation while staying secure under repeated movement.

• Left hand threads support easy on-assembly length tuning without disassembly

• Self-aligning ball design helps prevent binding during angular motion

• Hardened bearing surfaces extend service life in continuous-duty applications

This rod end bearing set is a handy choice when you need smooth motion, dependable alignment, and long-lasting performance in compact mechanical and automation setups.
