Planetary Gear Brushless Outrunner Motor For Robotics And RC Builds With 24 Mm Gearbox And 6 Mm Shaft DC 15 V Dual Performance Options High Speed 1250KV 80W For Fast Runs And High Torque 625KV 60W For Efficiency 7 To 18 V Includes 51 To 1 Gear Ratio

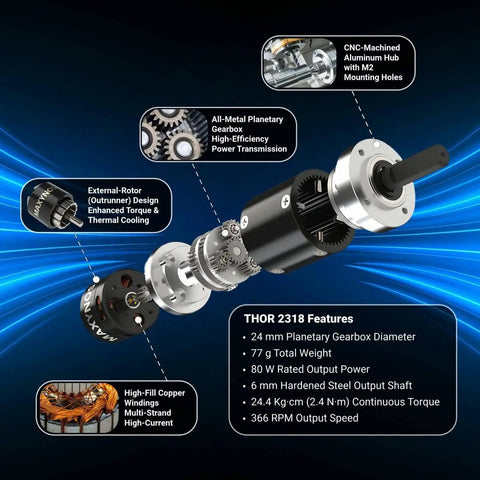

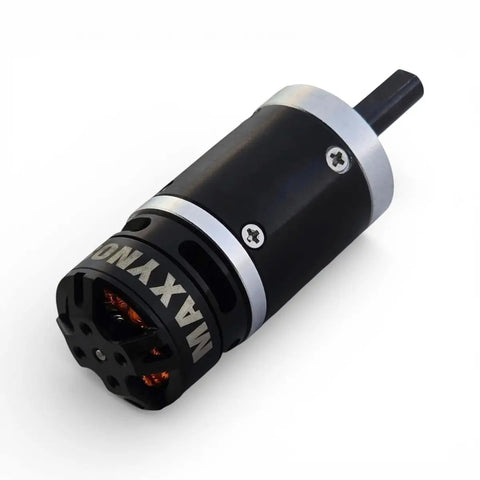

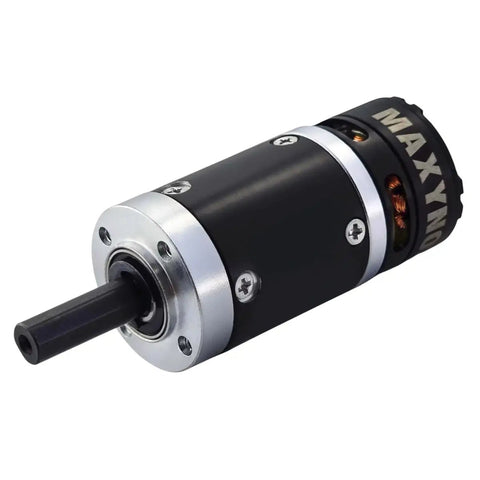

Compact brushless outrunner with planetary gearbox
✔️ Dual-speed 1250KV or high-torque 625KV, 6mm shaft, 24mm gearbox

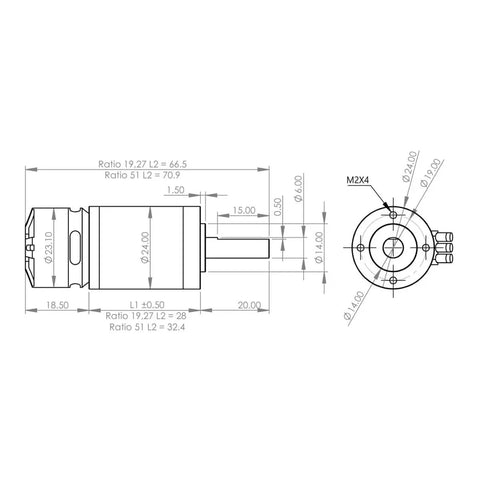

Designed for robotics, drones, and RC builds, this motor combines a 24 mm planetary gearbox with a robust 6 mm shaft for secure torque transfer. Pack: single unit.

✅ Gearbox options: 19:1, 27:1, 51:1

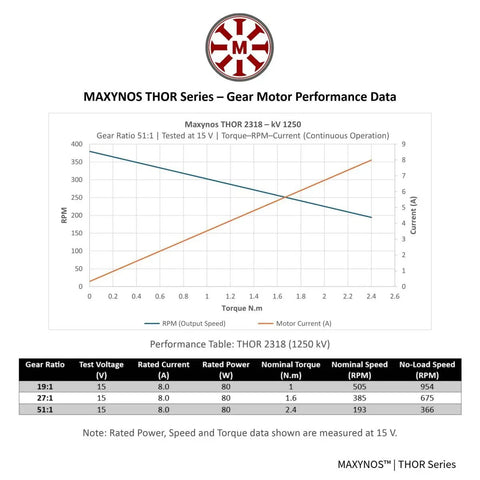

✅ Output torque: 1.0-2.4 N·m (10.2-24.4 kg·cm) continuous

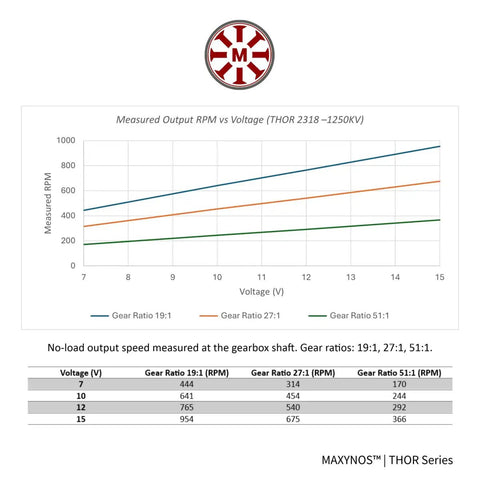

✅ KV options: 1250KV high-speed and 625KV high-torque
✅ Voltage range: 7-15 V for speed mode; 7-18 V for torque mode
✅ Weight: 70-77 g
✅ 6 mm hardened steel D-shaft for secure torque transfer

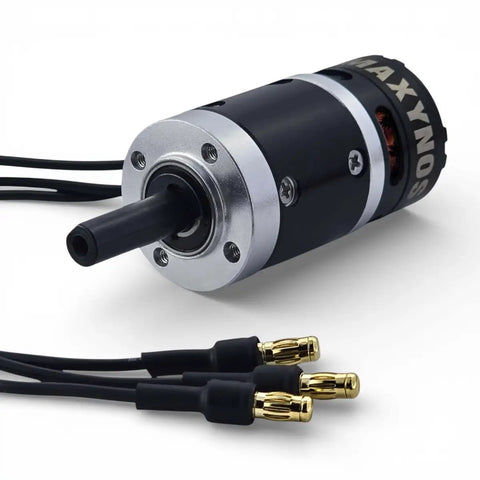

✅ 3.5 mm bullet connectors for quick wiring

💡 What is a brushless outrunner motor with a planetary gearbox best used for in hobby robotics and RC projects?

It's a handy choice that pairs speed and torque in a compact form, making it flexible for different builds.

- Handy for tight spaces like micro bots and drones - Great for achieving fast acceleration or strong torque in a small footprint - Gearbox ratios let you tune performance without swapping parts - External-rotor design helps with heat dissipation for longer runs
