Enhance torque and precision with a 5:1 planetary gearbox for NEMA 34 stepper motors, delivering ultra-low backlash under 18 arc minutes, 3000 RPM head, 86x86 mm frame, 14 mm input and 16 mm output shafts, CNC ready for repeatable accurate motion control

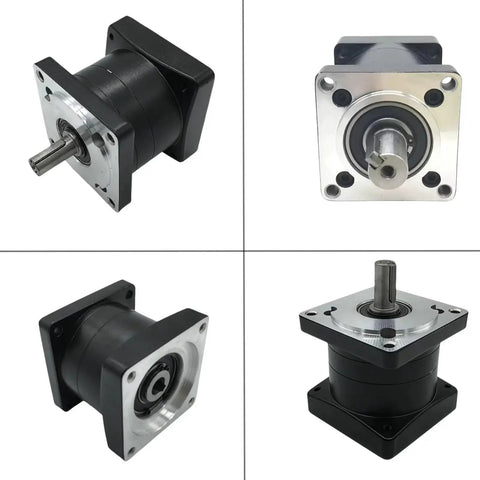

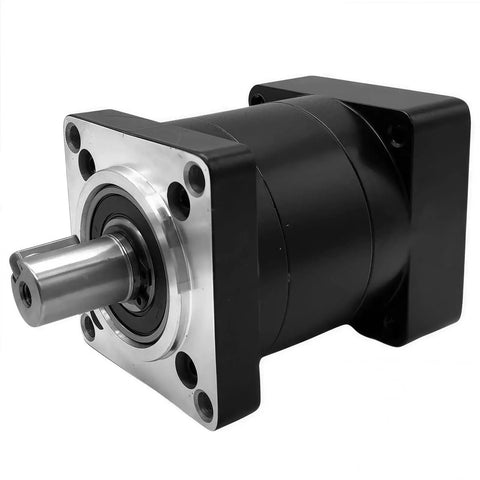

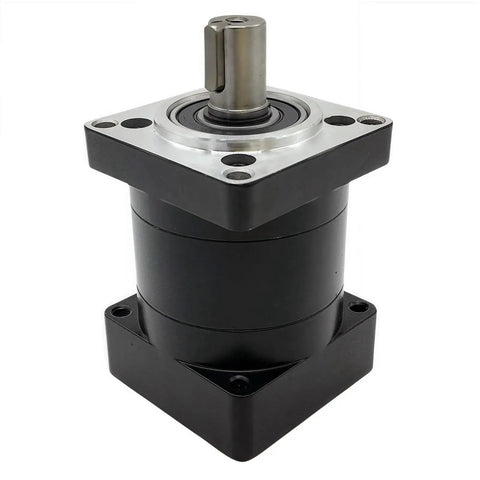

Planetary Gearbox for NEMA 34 Stepper 5:1 Reduction 1pc
✔️ 5:1 planetary gearbox for NEMA34, 86x86 (3.38 in), 14 input, 16 shaft

This planetary gearbox mates with NEMA 34 stepper motors to multiply torque at low speeds with minimal backlash, making it ideal for CNC mills, lathes, and precision automation.

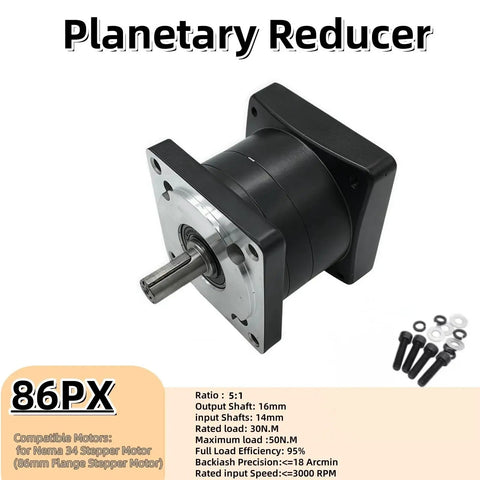

✅ Gearbox type: Planetary gearbox for NEMA34 86mm frame
✅ Gear ratio: 5:1
✅ Backlash: under 18 arc-min
✅ Rated load: 30 Nm, max 50 Nm

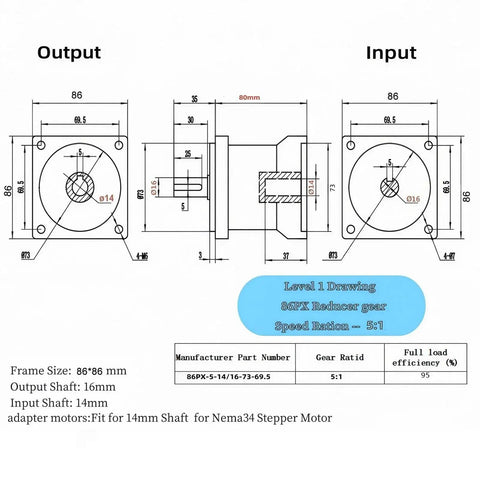

✅ Frame: 86x86 mm; input 14 mm; output 16 mm
✅ Efficiency: 95% full load
✅ Protection: IP65; life approx 20000 h
✅ Material: Alloy steel
✅ Included: 1 x Planetary Gearbox, 4 screws

💡 What is a planetary gearbox used for in precision motion control with NEMA 34 motors?

This handy gearhead helps achieve precise torque and slow-speed control with low backlash, ideal for repeatable automation tasks. - Handy for precise torque and speed control in CNC and automation - Improves repeatability and reduces wear on drive systems - Fits 86x86 mm frames and NEMA 34 motors for compact integration
