Planetary Gearbox Motor Reducer 86mm Stepper Gearbox For Textile Machines Aluminum Housing Built Tough With Smooth 3 To 1 Up To 216 To 1 Ratios 14 Input 14 Output High Torque 86mm Drive Precision Speed Control For Reliable CNC Automation

Single 86mm Planetary Gearbox for CNC and Textile Machines
✔️ 86mm drive, 14 input 14 output, rugged aluminum housing, single unit

Built for tough industrial use, this 86mm planetary gearbox motor reducer pairs with stepper motors to deliver reliable torque in CNC machines and textile processing equipment. Its aluminum housing protects internal gears and makes mounting simple.

✅ Aluminum alloy housing provides rugged durability and long life
✅ 86mm drive diameter with 14 input and 14 output for high torque
✅ Removable output shaft and enlarged base for stable mounting
✅ Low-noise lubrication reduces friction for quiet operation

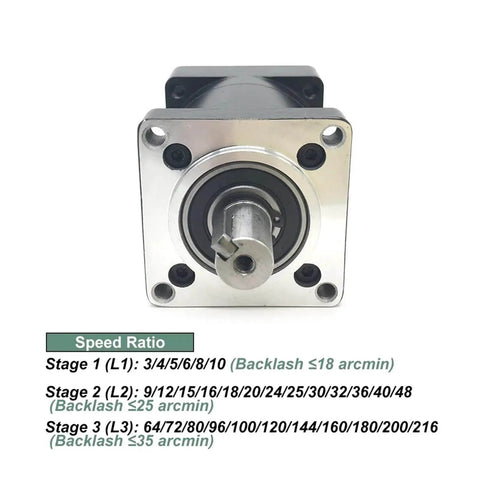

✅ Ratios from 3:1 to 216:1 enable flexible speed control

💡 What is a planetary gearbox used for in CNC machinery?

Planetary gearboxes are handy for compact, high-torque drives in automation and CNC setups. - High torque in tight spaces for precise axis control - Smooth power transfer with low backlash and sealed ball bearing options - Easy mounting with standard 86mm form factor for quick upgrades - Ceramic bearing variants improve wear life and durability
