POSB5L rod end bearing kit, 5/16 inch bore with 5/16-24 left hand male thread, self lubricating heim joint rod ends, forged steel body with hardened bearing ball, zinc plated for smooth motion in machinery and automation, 2 pcs

5/16 inch Left Hand Rod End Bearing for Motion Control
✔️ POSB5L Male Heim Joint 5/16-24 Thread 2 Pack

This 5/16 inch male rod end bearing set is built for smooth, flexible motion in compact mechanical systems. It’s commonly used in automation, CNC equipment, hydraulic cylinders, and machinery where clean articulation, low noise, and reliable load handling are important.

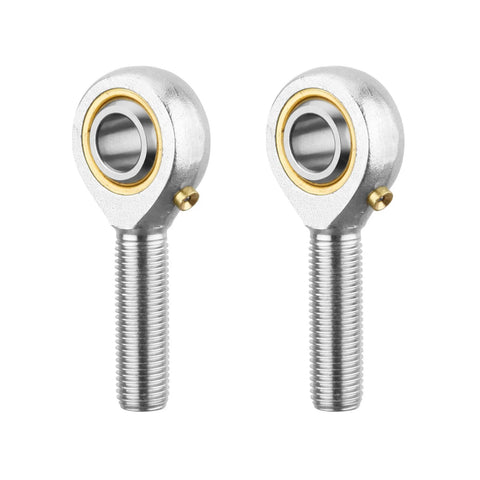

✅ Pack size: 2 rod end bearings
✅ Rod end bore: 5/16 inch
✅ Thread size: 5/16-24 left hand
✅ Body material: Forged #45 steel for strength and durability
✅ Ball material: Hardened bearing steel for wear resistance
✅ Finish: Chromium-plated spherical surface with zinc-plated body
✅ Self-aligning design with low operating noise
✅ Maximum angular misalignment: 10 degrees
✅ Static load capacity: 8.4 kN
✅ Dynamic load capacity: 6.9 kN
✅ Common uses: Hydraulic cylinders, automation systems, CNC machines, power tools, and mechanical linkages

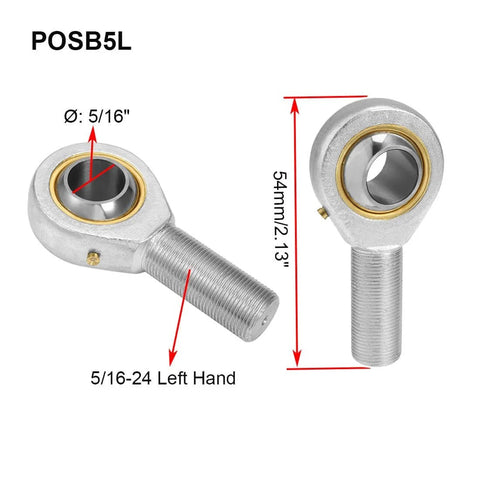

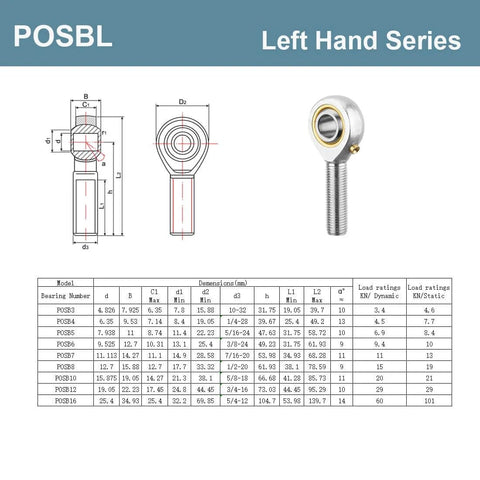

Dimensions
Bore diameter 5/16 inch
Thread size 5/16-24 LH

💡 Why are left hand self-lubricating male rod end bearings used in precision machinery?
They allow fine adjustment and smooth articulation while staying secure under repeated motion.

• Left hand threads make on-assembly length adjustment easy without removal

• Self-aligning ball design reduces binding and uneven wear

• Hardened bearing surfaces improve durability in continuous-duty applications

This rod end bearing set is a handy choice when you need smooth movement, precise adjustment, and dependable performance in compact mechanical or automation setups.
