POSB8 Rod End Bearing with 1/2 Inch Bore and 1/2-20 Right Hand Thread, Self Lubricating Male Heim Joint Rod Ends with Jam Nuts for Machinery, CNC, Automation and Hydraulic Motion Control, 2pcs

POSB8 Rod End Bearing with 1/2 Inch Bore and 1/2-20 RH Thread

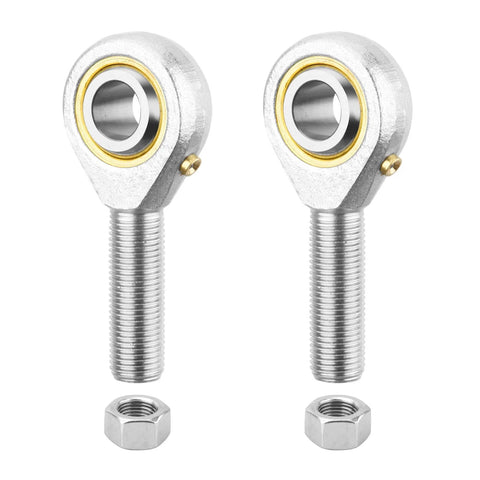

✔️ 2 pcs Self-Lubricating Male Heim Joint Rod Ends with Jam Nuts

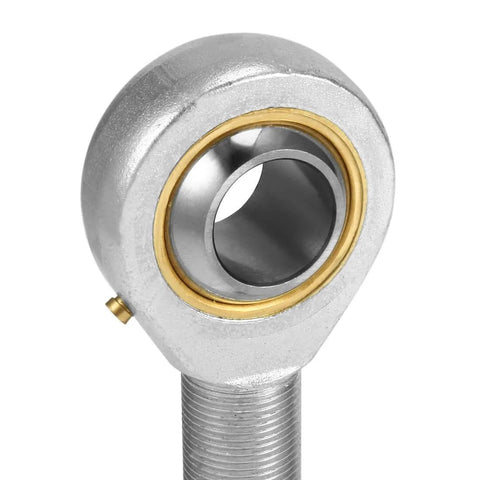

This self-lubricating male rod end bearing set is used for smooth motion transfer in mechanical linkages and control systems. It’s commonly installed in hydraulic cylinders, CNC equipment, automation assemblies, and machinery where quiet operation and reliable alignment matter.

✅ Pack size: 2 pieces, includes matching jam nuts
✅ 1/2 inch bore with 1/2-20 right hand male thread
✅ Self-aligning spherical design for smooth, flexible motion
✅ Forged #45 steel body with zinc-plated surface for corrosion resistance
✅ Hardened bearing steel ball for strength and long wear life
✅ Chromium-plated inner spherical surface for reduced friction
✅ Maximum angular misalignment up to 9 degrees
✅ Low-noise operation with solid internal retention design

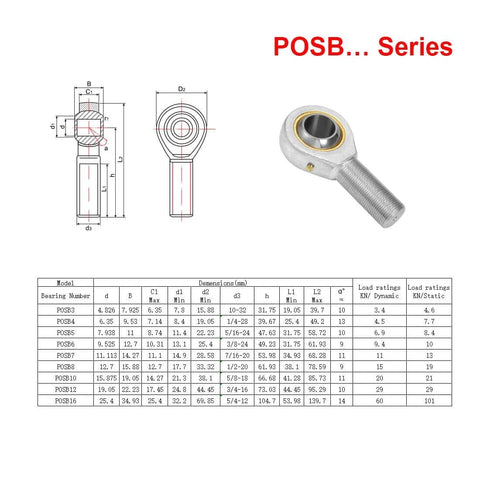

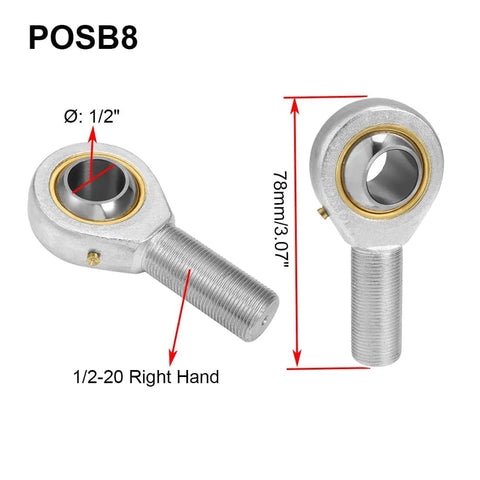

Dimensions and Specifications

Rod End
Thread Size 1/2"-20 RH
Bore Diameter 0.500 in
Maximum Misalignment 9 degrees

Load Ratings
Static Load Capacity 19 N
Dynamic Load Capacity 15 kN

Material
Body #45 steel
Ball Hardened bearing steel
Finish Zinc-plated body, chromium-plated inner surface

💡 What are self-lubricating rod end bearings used for in machinery and automation systems?
Self-lubricating rod end bearings are used when smooth motion, alignment tolerance, and low maintenance are required.

• Spherical design allows angular movement without binding

• Self-lubricating surfaces reduce friction and service needs

• Steel construction handles repeated loads and vibration

• Compact male thread design fits tight mechanical assemblies

This rod end bearing set is a handy choice when you need dependable motion control, quiet operation, and long service life in mechanical or automated systems.
