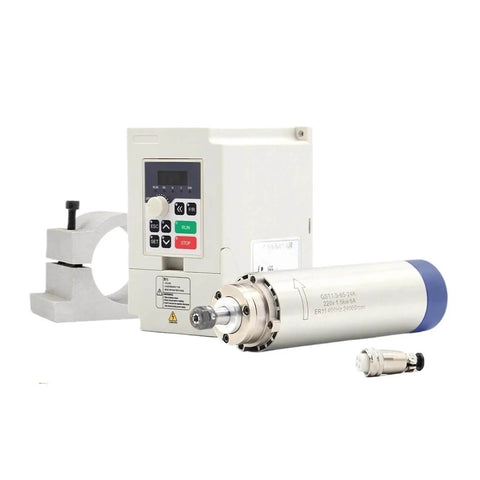

Powerful 1.5 kW ER11 Air Cooled Spindle Motor For CNC Machines With 1.5 kW Inverter VFD 65mm Aluminum Bracket 4 Ball Bearings Durable Cooling System For Heat Dissipation And Stable Performance
UPC:

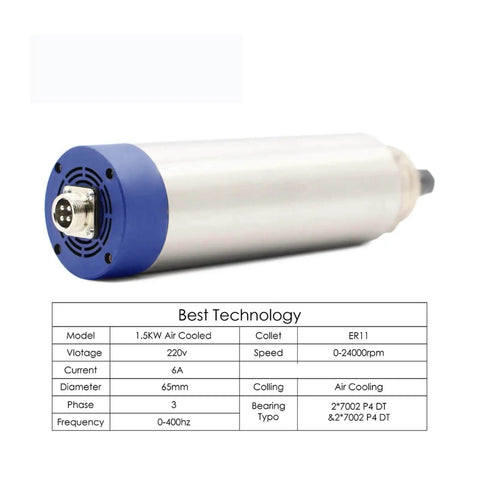

✔️ Single unit, 1.5kW ER11, 65x204 mm (2.56x8.03 in) bracket, 0-24k rpm
This compact air-cooled spindle motor is built for CNC milling and engraving, ideal for hobby CNC routers, benchtop mills, and light industrial machines. It includes a 65 mm aluminum bracket and ER11 collet to fit common tooling right out of the box.
✅ 1.5 kW power rating for demanding milling tasks
✅ ER11 collet supports 1-7 mm tooling (including 1/8" and 1/4")
✅ Speed range 0-24,000 rpm for high-speed cutting
✅ Runout as low as 0.01 mm for accuracy

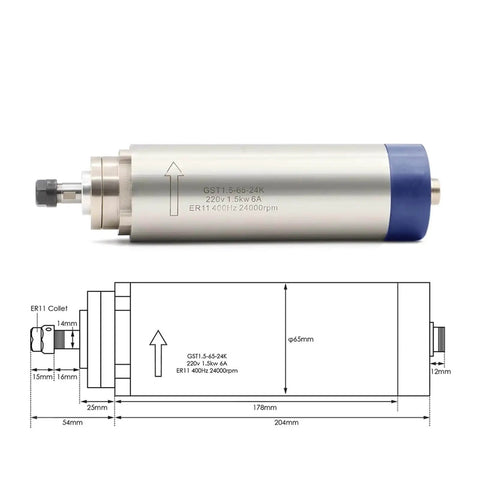

✅ Spindle size 65x204 mm (2.56x8.03 in) with 65 mm diameter
✅ Air cooling system for efficient heat dissipation
✅ 220V input, 6A current, 1.5 kW rating and 400 Hz inverter compatibility
✅ Bearing type: 2x7002C P4 DT

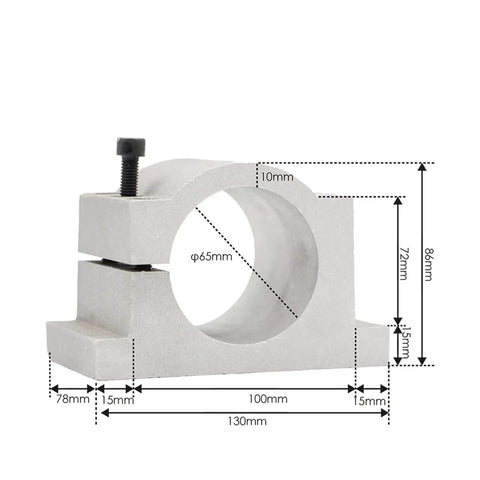

✅ Includes 65 mm bracket and ER11 collet
💡 What is a CNC spindle motor used for in small CNC milling setups? Handy for precise milling and routing in hobbyist and light-industrial shops. - handy for metal, wood, and plastic work at high speeds - supports ER11 collets from 1-7 mm - air-cooled design helps manage heat during long runs - works with standard 220V drives and VFDs
