Pro Grade One Quarter Inch NPT High Pressure Hydraulic Quick Coupler Set For Ten Thousand PSI Systems With Ball Valve ISO 14540 Series Machined Solid Steel Body Replaces Enerpac T630W Dust Caps Heavy Duty Quick Disconnect For Industrial Use

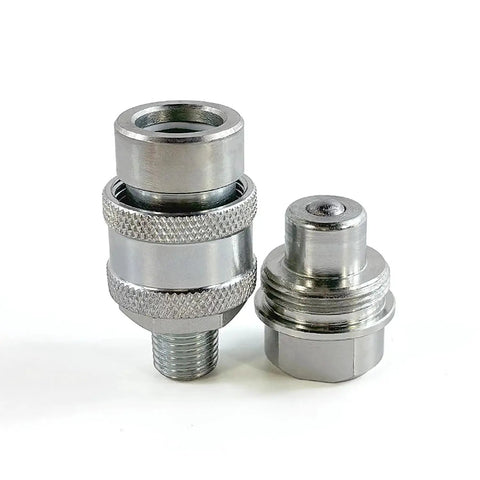

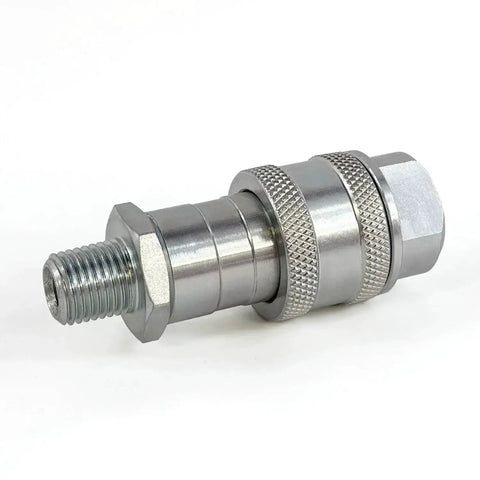

High-Pressure 1/4 in NPT ISO 14540 Quick Coupler Set (1 set)

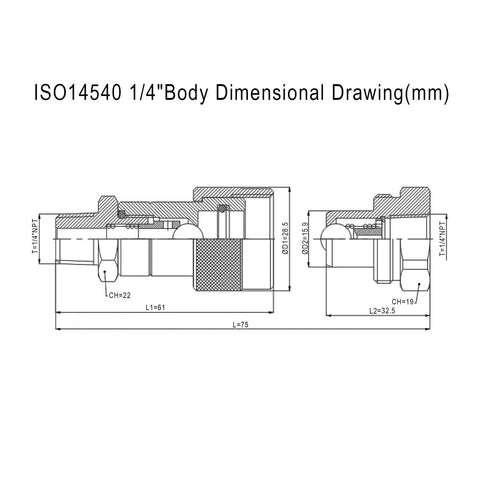

✔️ 1/4 in (6.35 mm) NPT body, ISO 14540, ball valve, 11.5 L/min, 69 MPa

These high‑pressure hydraulic quick disconnects are ISO 14540 compliant and designed for rugged industrial use. Machined from solid steel barstock, they’re built to handle hydraulic rams, jacks, and pumps, and they’re interchangeable with common kits that use the ISO 14540 standard.

✅ ISO 14540 standard, 1/4 in NPT threaded body
✅ Ball valve design for reliable sealing under high pressure
✅ Solid steel construction for durability and long life
✅ Rated flow 11.5 L/min, rated pressure 69 MPa
✅ Temperature range -20°C to 180°C with FKM seals

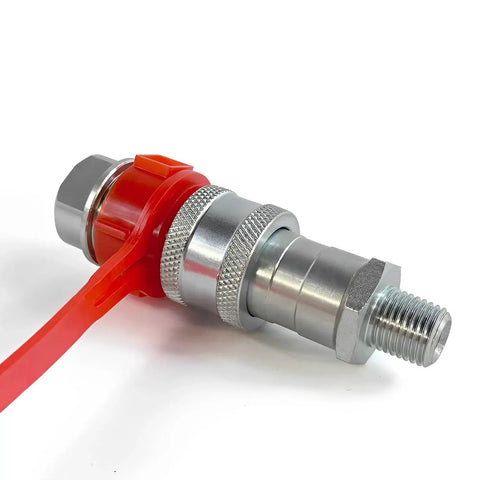

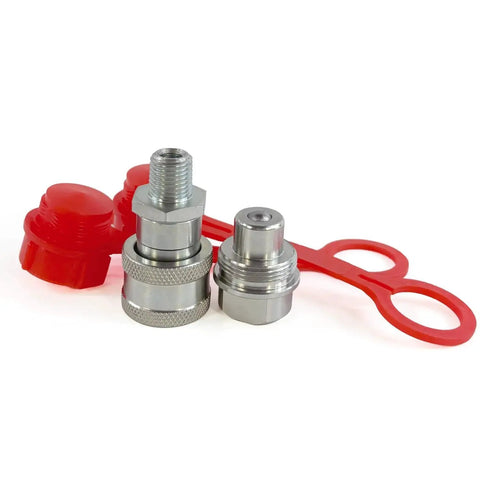

✅ Includes female coupler, male coupler, PVC dust plug and PVC dust cap

💡 What is a hydraulic quick disconnect used for?

These handy couplers make it easy to connect and disconnect hydraulic lines under pressure, reducing downtime and mess. - Handy for connecting hydraulic rams, jacks, and pumps - Sealed ball valve design helps prevent leaks under pressure - Interchangeable with ISO 14540 standards and major brands
