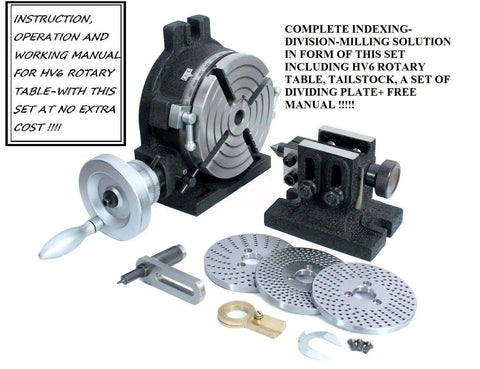

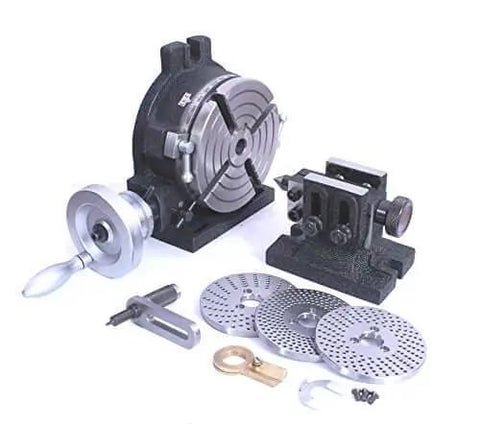

Pro Grade Workhorse Rotary Table With Steel Dividing Plates Set And Tailstock For Manual Milling Indexing Kit MT2 Bore Horizontal And Vertical Setup Includes Free Working Manual And All Required Accessories

Heavy Duty Rotary Table Kit with Dividing Plates & Tailstock
✔️ HV6 table, 150 mm dia, MT2 bore, 1:90 worm gear, 360°, incl. plates & tailstock

This compact manual milling indexing kit combines a 150 mm HV6 rotary table with a set of steel dividing plates and a tailstock. It’s designed for accurate horizontal and vertical setups, ideal for hobbyists and workshops needing precise indexing.

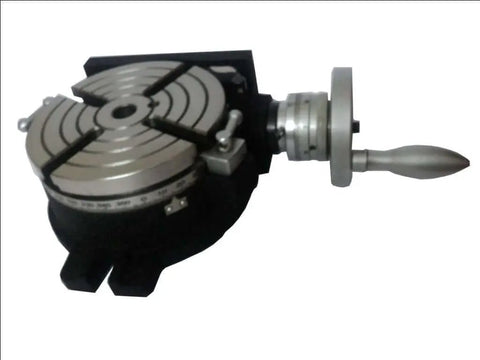

✅ Rotary table diameter 150 mm (6") MT2 bore
✅ Overall height 80 mm (3-1/4")
✅ Center height in vertical position 105 mm
✅ Worm gear ratio 1:90; 4° per turn
✅ 360° degree graduated dial; vernier 10 seconds
✅ Includes 3 dividing plates for indexing (A, B, C sets) with brass stopper key

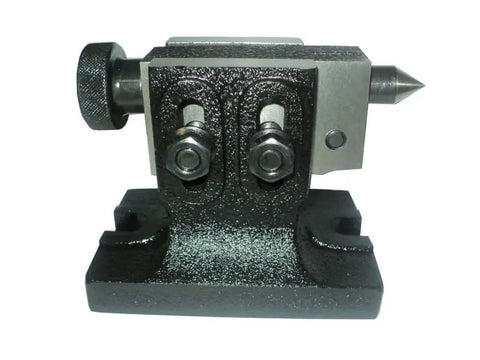

✅ Tailstock and all required accessories included; safety and operation manual

💡 What is a rotary table with indexing plates used for in manual milling?

A handy tool for precise angular indexing in milling. - precise angular steps for holes, slots, and gear-like features - supports horizontal and vertical orientation with a stable tailstock - uses dividing plates to create fixed increments and repeatable patterns - improves accuracy and repeatability in complicated machining tasks
