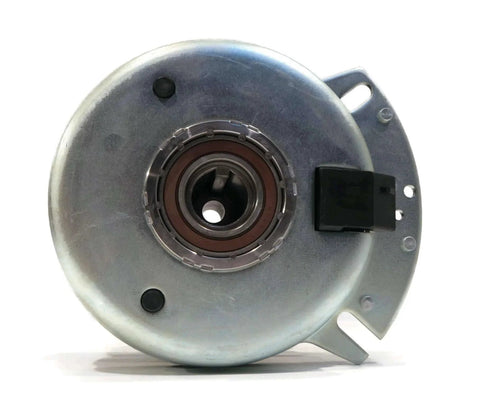

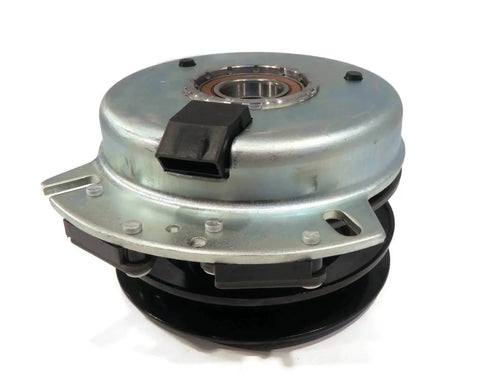

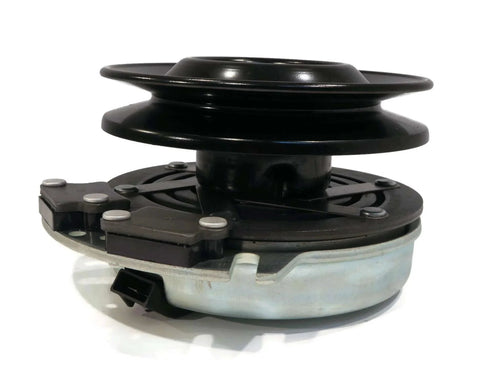

PTO Clutch & Wire Harness for Hustler TrimStar with 48" 17-19HP Kawasaki 930396

PTO Clutch and Wire Harness Kit for Hustler TrimStar 48in Kawasaki 930396
✔️ Includes clutch, high temp bearing, billet pulley, rivet, wire harness

Designed as a complete PTO clutch and wire harness replacement kit for Hustler TrimStar units with a 48-inch deck and Kawasaki 17-19 HP engines. Pack size: 1 kit. It’s a handy upgrade for lawn and small farm equipment that use a PTO-driven mower setup.

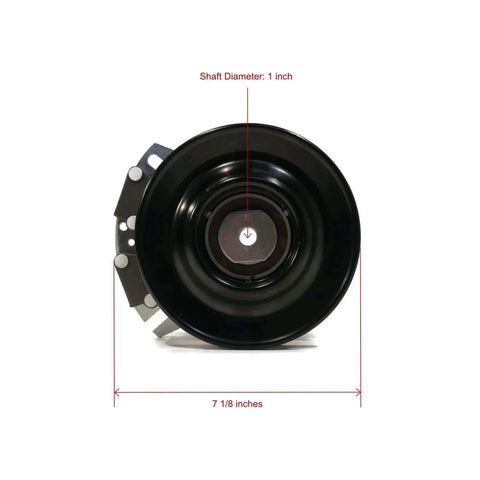

✅ Inner diameter 25.4 mm (1.00 in) bore

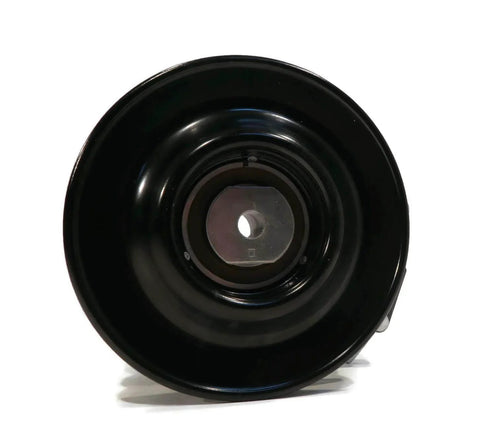

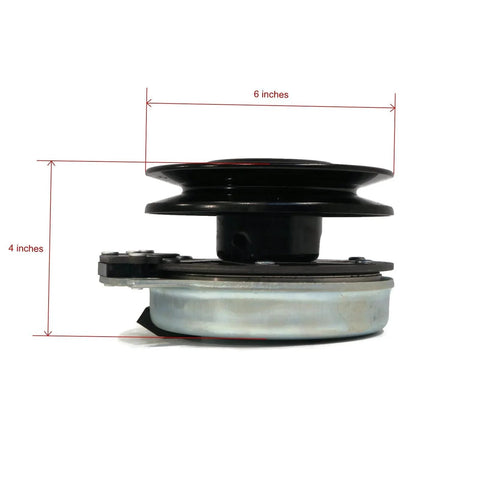

✅ Pulley diameter 152.4 mm (6.00 in)
✅ Rotation direction: Counter Clockwise
✅ Belt width: 12.7 mm (0.50 in) or 15.9 mm (0.625 in)

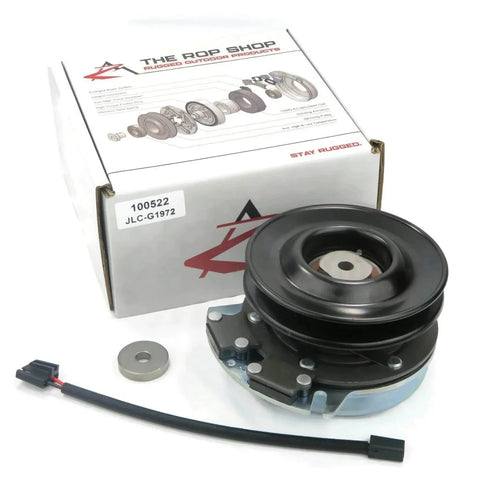

✅ Includes: Electric PTO Clutch, High Temperature Bearing, Billet Machined Pulley, Stainless Steel Rivet, Wire Harness
✅ Clutch contains a preinstalled keyway; fit may require keyway modification
✅ Does NOT include replaceable bearings

💡 What is a PTO clutch and wire harness used for in outdoor power equipment?

Handy explanation: It manages engagement of the PTO and routes power/signals to the clutch via the wire harness, improving reliability under load.

- It engages the PTO shaft to power the deck blades - The harness handles power, ground, and control signals for smooth operation - Helps maintain proper timing and engagement for mower performance - Suitable for lawn tractors and small agricultural equipment using a PTO
