Push To Connect Air Fittings Elbow One Quarter Inch Tube OD To One Eighth Inch NPT Male 90 Degree Adapter Pack Of Five Nickel Plated Brass Quick Connect Pneumatic Fittings For Air Vacuum Water No Tools Needed

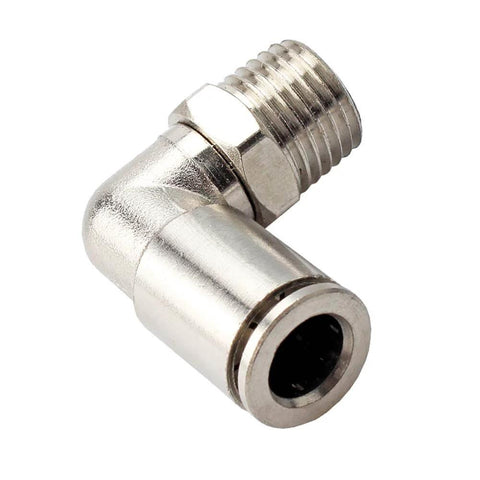

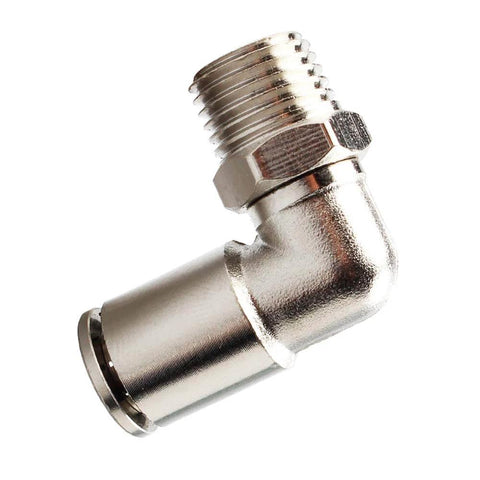

Push-to-Connect 1/4 to 1/8 NPT 90° Fittings, 5-Pack
✔️ Nickel-plated brass, 1/4 in tube to 1/8 in NPT, 90°

These quick-connect elbows join 1/4 in tubing to 1/8 in NPT ports with a 90-degree bend. Ideal for quick, tool-free connections in shop air lines, vacuum setups, and light water lines. Pack of five helps keep spares handy for ongoing projects.

✅ Type: Push-in / Push-to-connect elbow
✅ Tube OD: 6.35 mm (1/4 in) tube compatibility
✅ NPT thread: 10.3 mm major diameter (1/8 in NPT)
✅ Material: nickel-plated brass; O-ring: NBR
✅ Max working pressure: 150 psi (1.0 MPa)
✅ Proof pressure: 435 psi (3.0 MPa)
✅ Operating temp: 0-60°C (32-140°F)
✅ Fluids: air, vacuum, water (non-freezing)

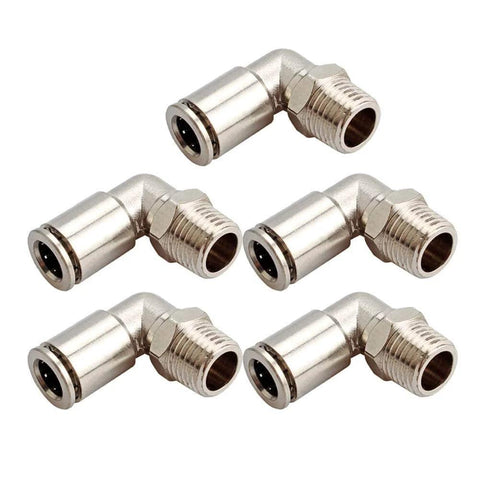

✅ Pack: 5 pieces

💡 What is a push-to-connect fitting used for in pneumatic systems? This handy connector makes quick, tool-free tube connections for air, vacuum, and light water lines.

• handy push-to-connect elbow for quick tube-to-port connections in air, vacuum, and water lines
• brass body with NBR seal provides leak-resistant performance in typical shop environments
• compatible with 1/4 in tubes and 1/8 in NPT ports for compact layouts
• operates from 0 to 150 psi and 0 to 60°C for many pneumatic setups
