RC102 Single Acting Alloy Steel Cylinder 10 Ton Capacity 2.13 Stroke

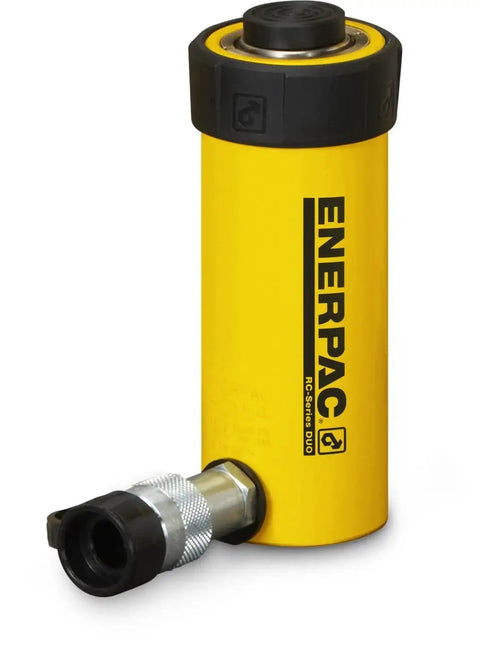

Compact 10 Ton Single-Acting Alloy Hydraulic Cylinder
✔️ 10-Ton, single-acting alloy steel with 2.13 in stroke

This single-acting alloy steel hydraulic cylinder provides 10-ton capacity with a 2.13 inch stroke. It's designed for general lifting and pushing tasks in industrial settings, and its round body with baked enamel finish offers corrosion resistance in harsh environments. The spring-return retracts the rod after extension to enable continuous movement in one-direction applications.

✅ Capacity: 10 tons (11.2 max)
✅ Stroke: 2.13 in
✅ Bore: 1.69 in
✅ Collapsed height: 4.78 in
✅ Extended height: 6.91 in
✅ Outer diameter: 2.25 in
✅ Weight: 5.1 lb
✅ Port: Quick-connect CR-400 female for CH-604 male (sold separately)
✅ Finish: baked enamel on high-strength alloy steel
✅ Features: spring-return, stop ring, plunger wiper, GR2 bearings

💡 What is a 10-ton single-acting hydraulic cylinder used for in lifting and pushing tasks?

This handy device is commonly used in industrial settings to move loads with controlled force in a single direction.

• Used for lifting heavy loads in tight spaces and positions
• Supports pushing and positioning tasks in fixture setups
• Easy to connect with CH-604/CR-400 couplers for quick setup
