Rib Neck M8 x 1.25 Press In Stud 35mm Zinc Class 10.9 10 Pack

M8x1.25 Rib-Neck Press-In Stud, 35mm Zinc, 10-Pack
✔️ M8 x 1.25 thread, 35mm length, zinc plated, class 10.9

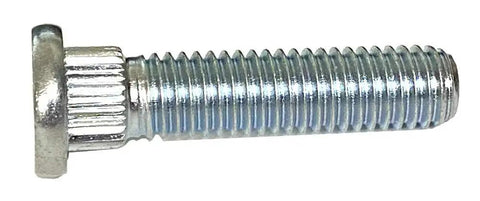

This rib-neck press-in stud is a high-tensile fastener designed to anchor components into hubs, plates, or struts. The rib-neck design helps lock the stud into a drilled hole for secure seating. Zinc plating adds corrosion resistance, and the 10-pack gives you plenty for multiple projects.

✅ Size: M8 diameter, metric core
✅ Thread pitch: 1.25 mm
✅ Length: 35 mm
✅ Head height: 2.5 mm
✅ Head diameter: 13.5 mm
✅ Knurl diameter: 9.12 mm
✅ Knurl length: 7 mm
✅ Material: zinc plated steel, class 10.9
✅ Pack size: 10 per package

💡 What is a press-in rib-neck stud used for in mechanical assemblies?

This handy fastener locks into a drilled hole and accepts threaded components for secure, flush mounting in hubs, plates, and braces. - purpose: used to anchor parts in hubs, plates, and braces - rib-neck design: locks into drilled holes for secure seating - finish and strength: zinc plating with class 10.9 rating for tough environments - installation note: follow hole size guidance based on hub material
