Compact 1:1 right angle bevel gearbox with 1.5 module, 20 teeth and a 15mm shaft, perfect for DIY projects, delivering reliable 90 degree drive, space saving installation, easy mounting, and smooth torque transfer up to 5 Nm at up to 1000 rpm

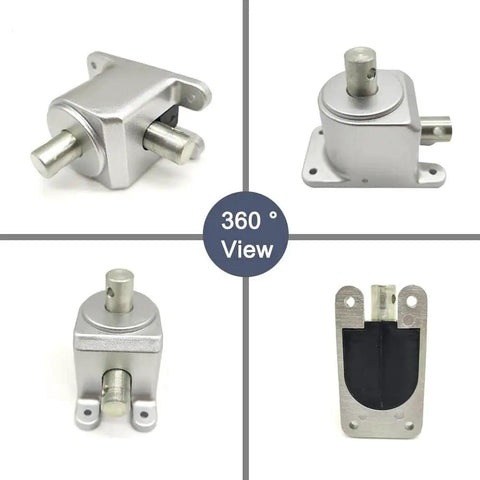

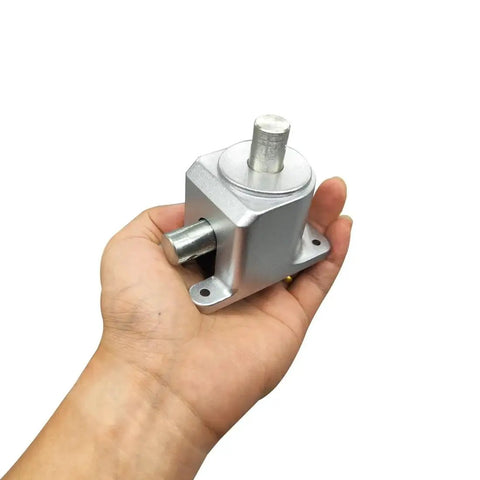

Right Angle Bevel Gearbox, 1.5 Module, 20 Teeth, 15mm Shaft
✔️ 1:1 right-angle gearbox, single unit, 15mm shaft, 5 N·m, 1000 rpm

This compact, 1:1 right-angle bevel gearbox is designed for simple DIY mechanical applications. It redirects drive at a 90-degree angle to fit tight spaces in hobby robotics, small machines, and DIY projects.

✅ built-in 1.5 module 20-tooth bevel gears for a 1:1 ratio
✅ 15 mm shaft diameter (0.6 in) for easy mounting
✅ max torque 5 N·m (3.6 ft-lbs)
✅ max speed 1000 rpm
✅ material: aluminum alloy and #45 steel with galvanization

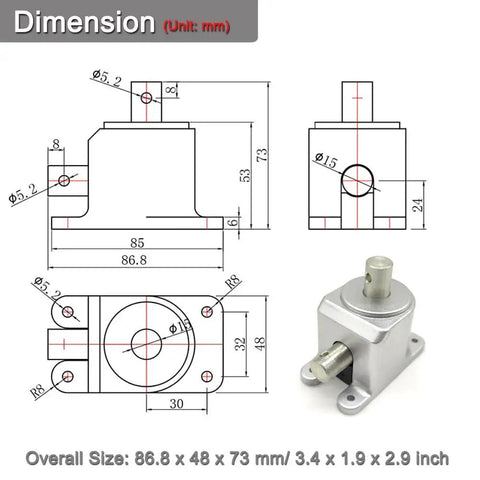

✅ overall size: 86.8 x 48 x 73 mm (3.4 x 1.9 x 2.9 in)
✅ input/output shaft not replaceable; not meant for high torque CNC use

💡 What is a practical use for a right angle bevel gearbox in DIY projects?

A handy component for redirecting drive in tight spaces. - It lets you route motor power to a perpendicular axis without bulky gear trains. - Great for hobby robotics, small automation, camera rigs. - Keeps the setup compact with simple mounting.
