Compact right angle planetary gearbox for NEMA23 motors delivers higher torque and precise, smooth motion in tight spaces with a 7:1 reduction, 8mm input, 14mm output shaft, 60x60 mm frame, IP65 protection for rugged reliability

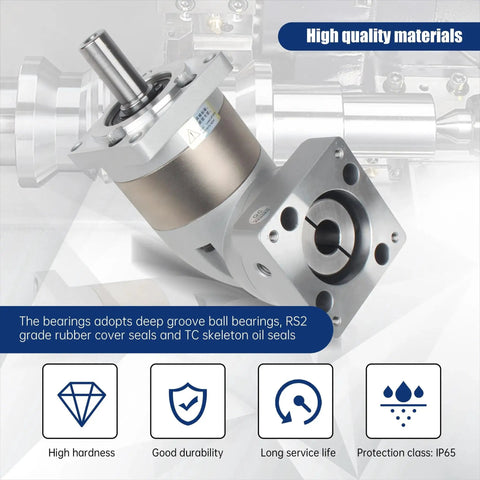

Right-Angle Planetary Gearbox for NEMA23, 7:1, 14mm Output
✔️ 60x60 mm frame, 7:1 ratio, 8mm input, 14mm output shaft, IP65, Pack 1

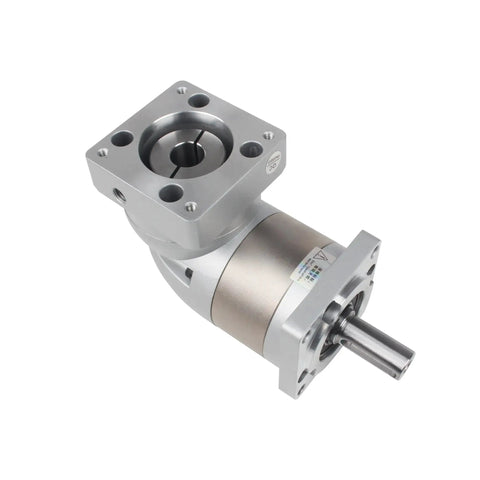

This compact right-angle planetary gearbox is designed to mount on NEMA23 stepper motors, delivering controlled speed, torque, and reliable performance in tight spaces. It's ideal for small automation tasks, robotics, medical equipment, and packaging lines where 90-degree mounting is needed.

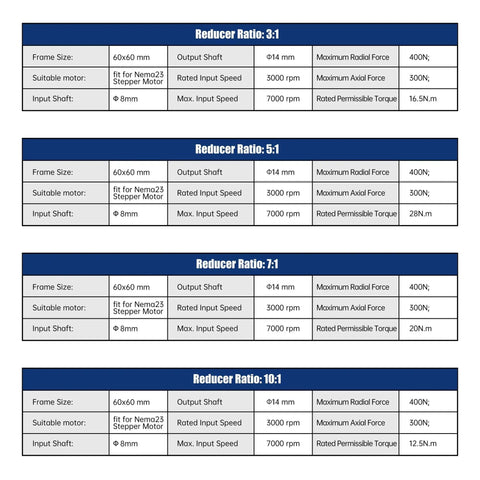

✅ 7:1 gear ratio; 90-degree planetary reducer

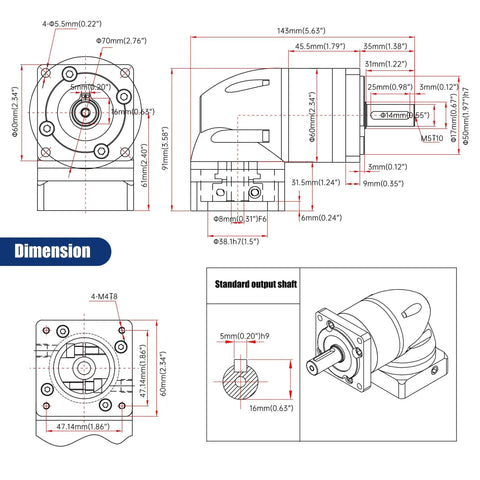

✅ Frame size 60x60 mm; input 8 mm; output 14 mm shaft
✅ Rated input speed 3000 rpm; max 7000 rpm
✅ Max radial 400 N; max axial 300 N

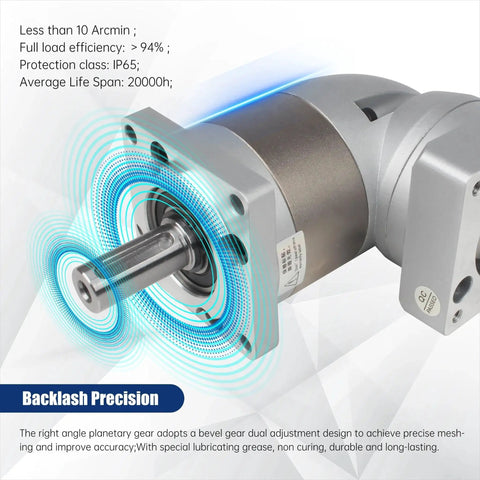

✅ Rated torque 20 N m; backlash < 10 arcmin

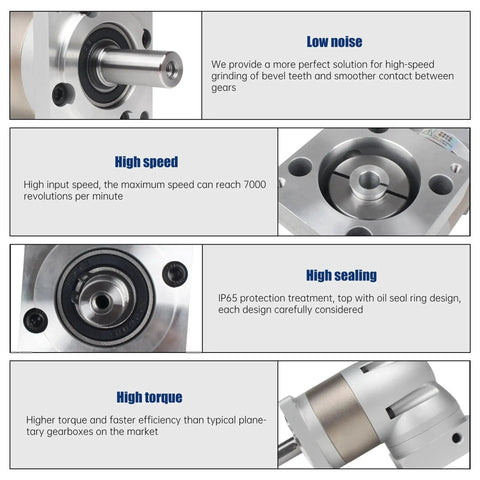

✅ Full-load efficiency ≥ 94%; IP65 protection

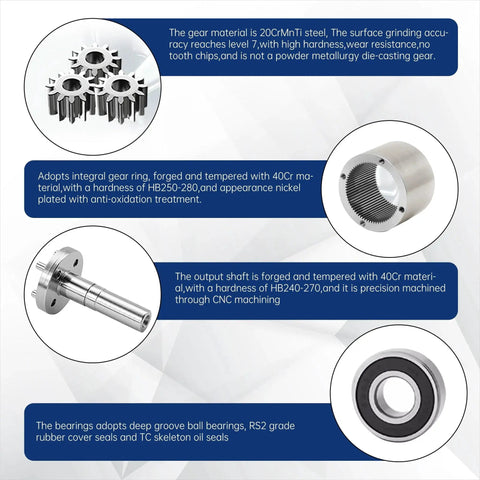

✅ Life ~20000 h; gears hardened 20CrMnTi

💡 What is a common use for a right-angle planetary gearbox in automation?

It's handy for changing drive direction and increasing torque in compact setups.

- handy for tight spaces in automation, robotics, and packaging lines - improves precision and torque when paired with NEMA23 motors - reduces shaft misalignment and vibration in small CNC, engraving, and printers - supports IP65 environments with sealed design
