Right hand 3/4 inch Heim joint rod end with jam nut, 5/8 inch bore and 4 inch long shank, heat treated carbon steel with zinc finish, designed for steering, suspension, traction bars and linkage joints in heavy duty applications

Right Hand 3/4 inch Heim Joint Rod End for Steering and Suspension
✔️ 5/8 inch Bore x 4 inch Long 3/4-16 Thread with Jam Nut

This right hand heim joint rod end is built for steering, suspension, and linkage systems that need stable alignment and smooth pivoting under load. It’s commonly used on traction bars, control links, and mechanical connections where durability and precise movement are important in demanding environments.

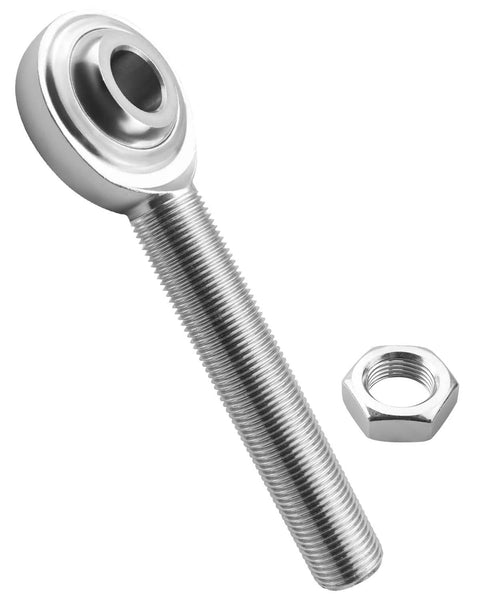

✅ Pack size: 1 piece including right hand threaded rod end with jam nut and bushing assembly
✅ Rod end bore: 5/8 inch
✅ Thread size: 3/4-16 right hand
✅ Shank length: 4.0 inch
✅ Material: Heat-treated C1045 carbon steel

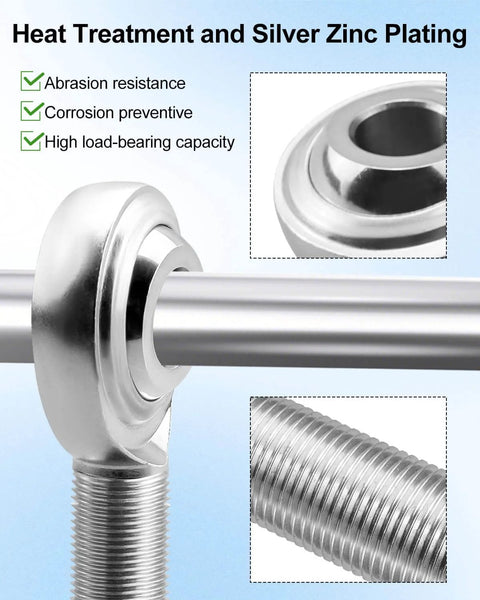

✅ Finish: Silver zinc plated for corrosion and wear resistance

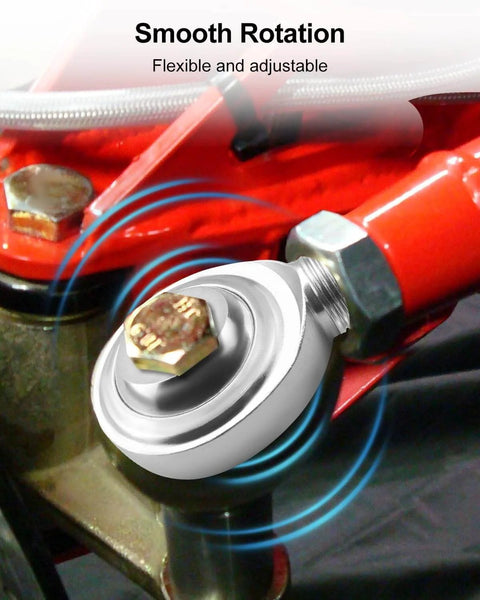

✅ Precision-ground internals for smooth, controlled rotation

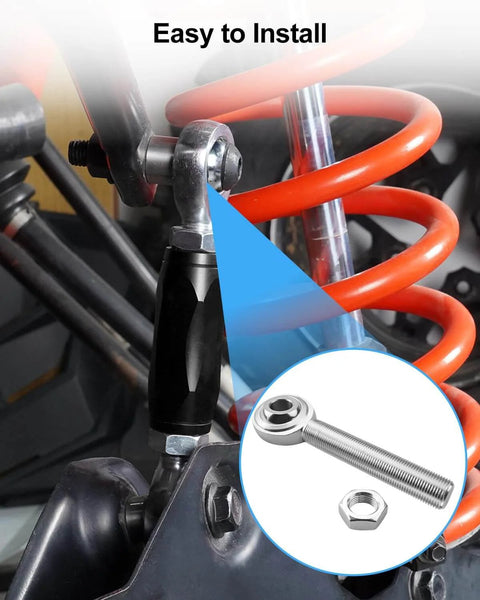

✅ Supports welding installation or mounting with standard hardware

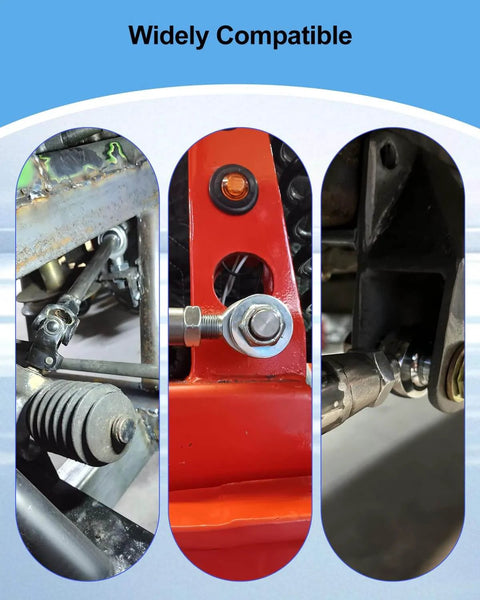

✅ Common uses: Steering systems, suspension links, traction bars, mechanical linkages, and equipment upgrades

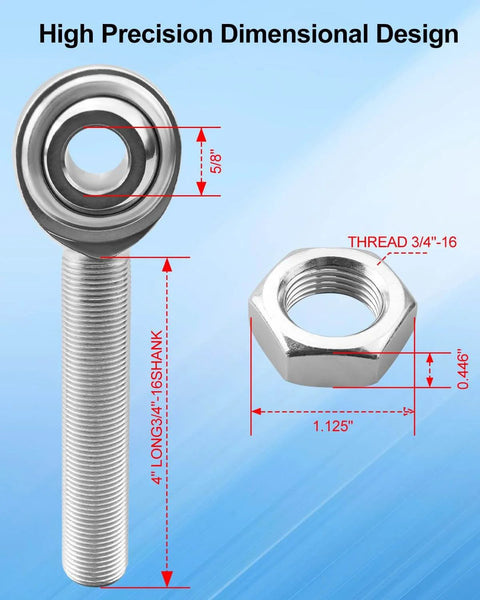

Dimensions
Bore diameter 5/8 inch
Thread size 3/4-16 RH
Shank length 4.0 inch

💡 Why are right hand 3/4-16 heim joints with a 5/8 inch bore used in steering and linkage systems?
They provide strong load handling with controlled articulation in adjustable assemblies.

• Right hand threads pair with left hand joints for easy on-vehicle length adjustment

• Heat-treated steel construction resists fatigue under repeated shock and vibration

• Precision joint geometry helps reduce shake and improve system stability

This heim joint is a handy choice when you need smooth motion, reliable strength, and consistent performance in high-load steering or suspension applications.
