Round Trailer Axle Spindle For ID Bearings Built Tough With Wide Mounting Surface 1350 Pound Capacity 1 Inch 14 Thread Includes Nut Washer And Cotter Pin Bearings Not Included Seal Not Included

Single heavy-duty round trailer spindle with 1-14 thread

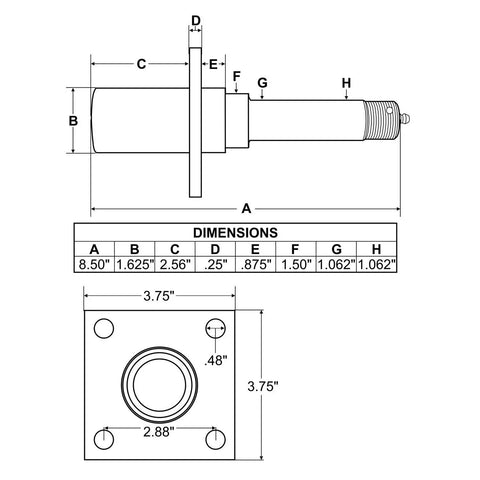

✔️ 1-1/16 in bearing surface; 1-5/8 in mounting; 1,350 lb cap; 1-14 thread

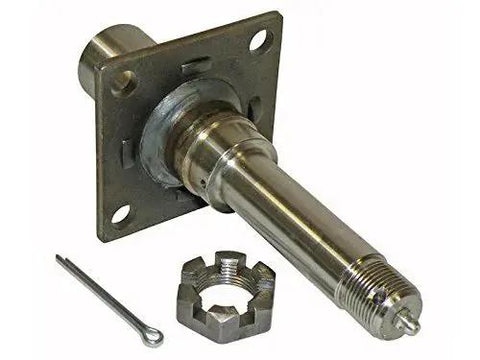

This round trailer axle spindle is forged from solid steel for durability and is rated for 1,350 pounds. It features a 1-1/16 in bearing surface and a wide 1-5/8 in mounting surface, designed for solid installation on trailers. Bearings and seals are not included, but the nut, washer and cotter pin are included. A 4-bolt brake mounting flange is included, making brake setup straightforward. This is a single spindle unit; using two spindles increases axle capacity to 2,200 lb gross trailer weight.

✅ 1-1/16 in bearing surfaces
✅ 1-5/8 in mounting surface
✅ 1,350 lb capacity
✅ 1-14 thread
✅ 1-1/2 in seal diameter surface
✅ Bearings not included; nut, washer and cotter pin included
✅ 4-bolt brake mounting flange included
✅ Two spindles increase capacity to 2,200 lb gross trailer weight

💡 What is a round trailer axle spindle and how does it work? This handy overview explains the core idea in plain terms. - It acts as the mounting hub point for bearings and wheel hubs - It transfers wheel load from the wheel to the axle and frame - It uses a standard 1-14 thread to accept nuts and hubs - It works with brake assemblies on trailers that use a 4-bolt mounting flange
