25mm RSBW25 Self Sprag Freewheel Backstop One-Way Clutch 25x106x48mm
UPC: 00193019338605

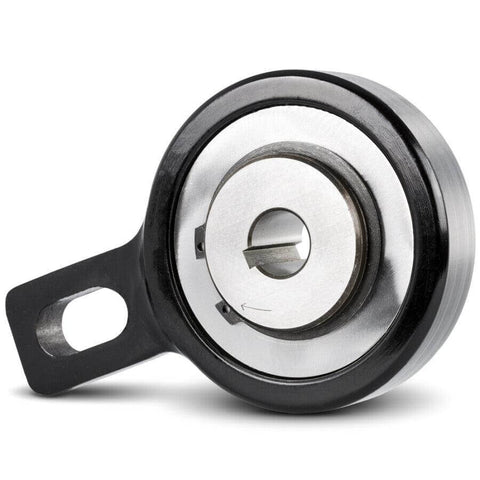

RSBW25 Freewheel Backstop Clutch
✔️ 25mm x 106mm x 48mm - One-Way Sprag System
The RSBW25 clutch bearing is designed for applications that demand one-direction movement with zero backspin. Ideal for industrial systems like conveyors, mining machines, and textile equipment - it prevents reverse motion during sudden stops or power failures.
✅ Type: One-way clutch bearing
✅ Inner diameter: 25mm
✅ Outer diameter: 106mm
✅ Width: 48mm
✅ Applications: Overrunning, Indexing, Backstopping
✅ Quantity: One clutch bearing

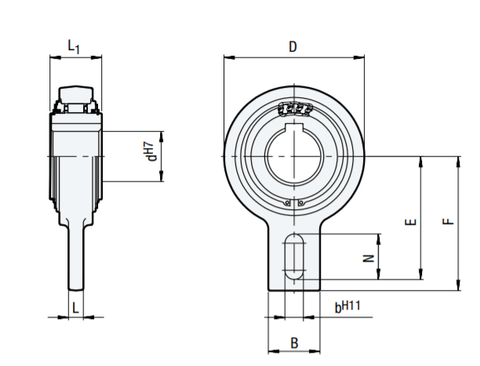

Detailed Dimensions (mm):
| d (ID) | D (OD) | L1 (Width) | F | E | B | N |
|---|---|---|---|---|---|---|
| 25 | 106 | 48 | 113 | 102.5 | 40 | 35 |
💡 Why are freewheel clutch bearings essential in vertical conveyor systems?
They allow motion in one direction while locking instantly if motion tries to reverse. This prevents backflow of material, protecting both the system and the load - especially when gravity could otherwise cause a rollback.
A dependable solution when directional control and safety are a must.
