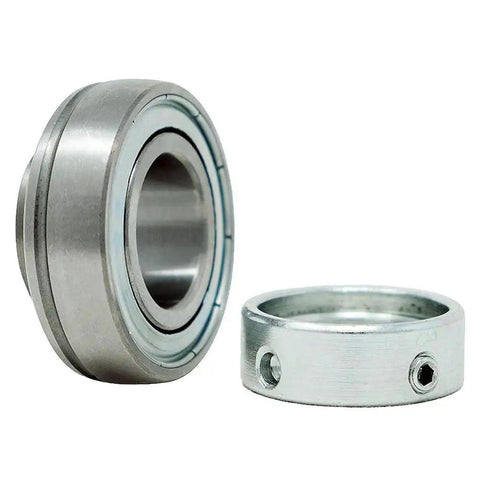

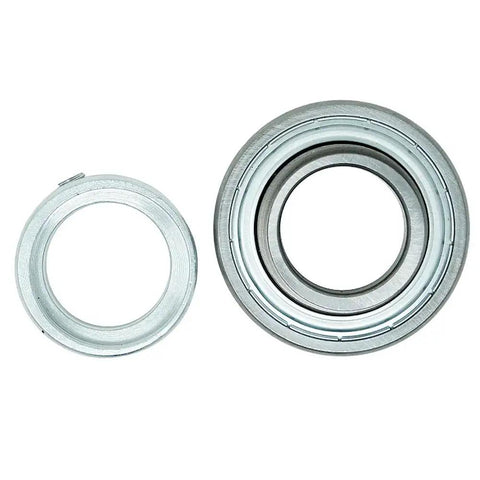

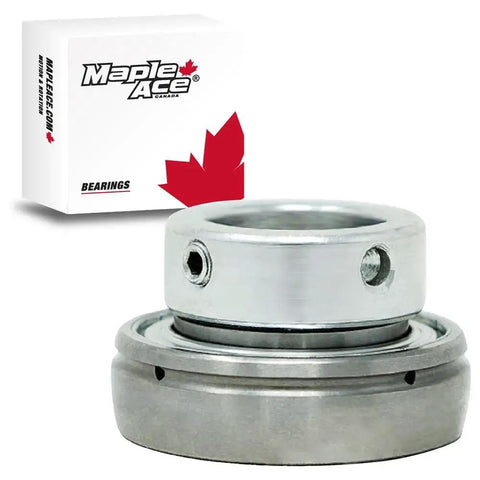

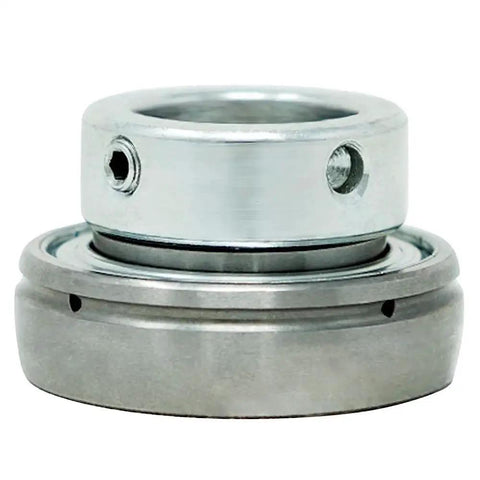

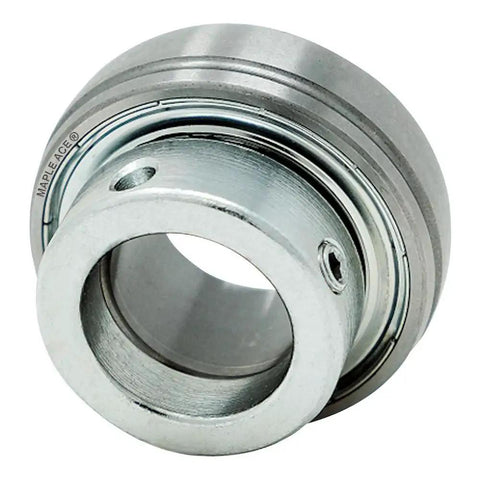

SA206-20 Insert Bearing With One And One Quarter Inch Bore Spherical Outer Diameter Eccentric Locking Collar And Lubrication Hole For Heavy Duty High Performance OEM Replacement Use Low Noise Long Life And Reliable In Extreme Climates

SA206-20 Insert Bearing with 1.25in Bore and Ecc Collar
✔️ 1.25 in bore, spherical OD, dual shields, lubrication hole, relubrication

This SA206-20 insert bearing is a heavy-duty spherical bore bearing featuring an eccentric locking collar, designed for heavy machinery and OEM replacements. It comes with dual shields to resist dust, pre-lubricated grease, a relubrication hole for periodic maintenance, and a robust GCr15 steel construction for long life in extreme conditions.

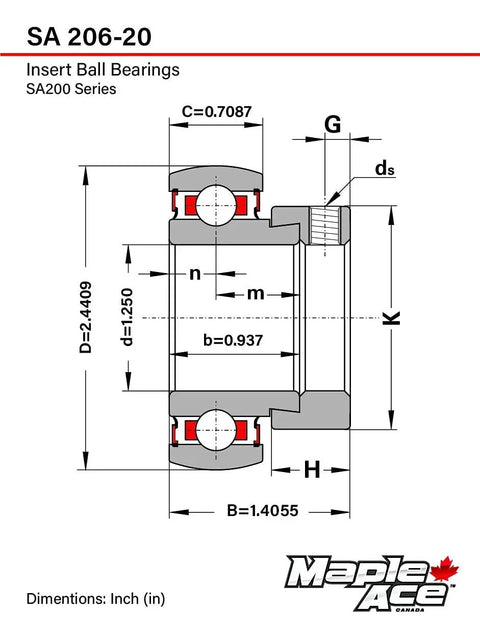

✅ Bore diameter: 31.75 mm (1.25 in)
✅ Outer diameter: 62.00 mm (2.4409 in)
✅ Width with collar: 35.70 mm (1.4055 in)
✅ Width inner ring: 23.80 mm (0.937 in)
✅ Width outer ring: 18.00 mm (0.7087 in)
✅ Dynamic load rating Cr: 19500 N
✅ Static load rating Cor: 11200 N
✅ Limiting speed: 6300 r/min
✅ Clearance: Normal
✅ Closures: Shield on both sides
✅ Sealing type: Contact standard
✅ Lubrication type: Grease RL2
✅ Lubrication temperature: -20°C to +160°C
✅ Relubrication feature: With
✅ Rolling element: Ball
✅ Material: GCr15
✅ Locking type: Eccentric Locking Collar
✅ Weight: 0.290 kg

💡 What is an insert bearing with an eccentric locking collar used for in standard machinery?

This handy component provides secure mounting, easy adjustment, and reliable life in demanding setups.

• handy for secure housing fit and precise alignment
• relubrication hole enables easy grease top-ups in harsh settings
• shielded design protects against dust and moisture
• pre-lubricated configuration reduces downtime and maintenance
