Safety Engineered Swivel Hoist Ring Alloy Steel With Black Oxide Finish G Thread Size 1/2-13 2500 Lb Working Load Limit 3-49/64 Inch Height 1-1/16 Inch Thread Length 360-Degree Rotation And 180-Degree Pivot Under Load

Safety Engineered Swivel Hoist Ring, Alloy Steel 2500 Lbs
✔️ 1/2-13 G thread, 3-49/64 in height, 1-1/16 in length, 2500 lbs WLL

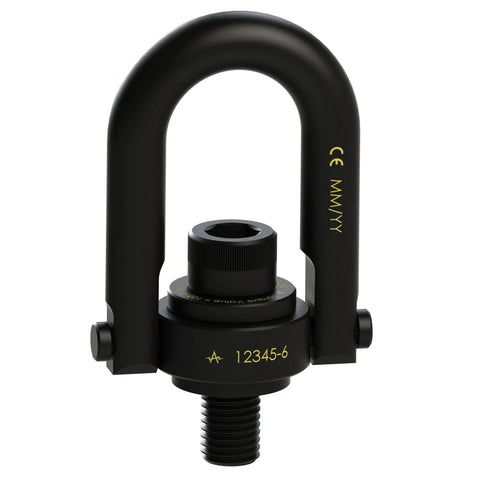

The American Drill Bushing 23301 Safety Engineered Swivel Hoist Ring is a single‑unit lifting accessory built from alloy steel with a black oxide finish for corrosion resistance. It delivers a full 360-degree swivel and 180-degree pivot under load, making it ideal for attaching rigging from any direction in harsh environments like construction yards, manufacturing floors, and maintenance workshops.

✅ Material: Alloy steel (C4-4140), minimum tensile strength 180,000 psi
✅ Finish: Black oxide per MIL-DTL-13924B for corrosion resistance
✅ Design: 5:1 design factor; 360° swivel; 180° pivot under load
✅ Size: G thread 1/2-13 (12.7 mm); height 3-49/64 in (95.65 mm); thread length 1-1/16 in (27.0 mm)
✅ WLL: 2500 lbs; Meets MIL-STD-1365, Mil-STD-209C, ASME B30.26
✅ Inspections: Magnetic particle inspected per ASTM E 1444

💡 What is a safety engineered hoist ring used for in heavy lifting operations?

It's a handy device for safe, reliable lifting in multiple directions.

- Handy for overhead lifting in construction and manufacturing
- 360° swivel and 180° pivot help align loads
- Designed with a 5:1 capacity factor and 2500 lb WLL
- Meets ASTM E 1444 inspection standards and related specs
