Self Aligning Four Bolt Flange Pillow Block Bearing One And A Quarter Inch Bore Model 206 20 With Chromium Steel Bearing And Cast Iron Housing For Industrial Machinery

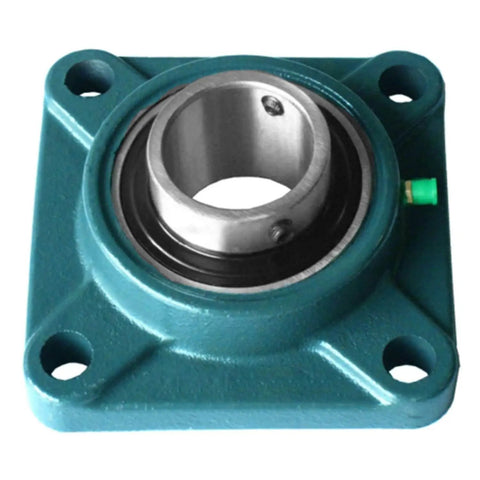

Single 1-1/4 in flange pillow block bearing, self-aligning
✔️ 1-1/4 in bore, 4-bolt flange, relubricable with grease

This self-aligning pillow block bearing is built to support a 1-1/4 inch shaft with a rugged cast iron housing, featuring a chromium steel inner bearing (GCr15). It is commonly used on conveyors, agricultural equipment, construction machinery, and general industrial setups that need solid shaft guidance and easy mounting. Equivalents include AMI UCF206-20S, NSK UCF206-20S, SKF FY-1-1/4-TM; order variations help with stock and sourcing flexibility.

✅ Bore: 1-1/4 in (31.75 mm) inner diameter
✅ Overall length: 4-1/4 in (107.95 mm)
✅ Bolt centers: 3-17/64 in (82.95 mm)
✅ Mounting bolts: 3/8 in diameter (9.525 mm)
✅ Bearing material: Chromium Steel (GCr15) in Cast Iron housing

💡 What is a pillow block bearing used for in industrial equipment? This handy bearing keeps shafts aligned and supported in a fixed plane.
