1050mm SFU1605 CNC Ball Screw Assembly with Ballnut, BK12 BF12 Supports & Coupler, 16mm Diameter 5mm Pitch RM1605 End Machined Ballscrew, C7 Precision Shiny Surface for Smooth Low-Torque Linear Motion

SFU1605 1050mm CNC Ball Screw Kit with Ball Nut and Supports
✔️ 16mm Diameter 5mm Lead RM1605 Ball Screw Assembly

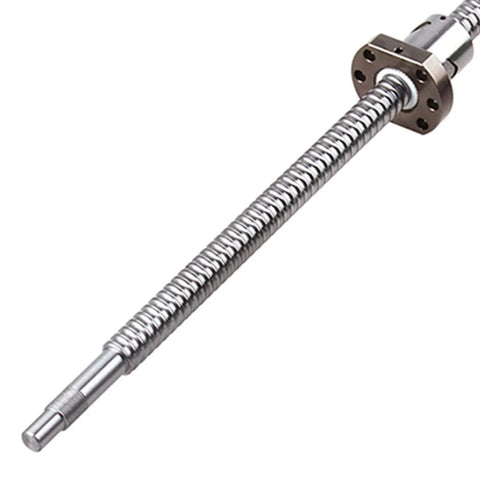

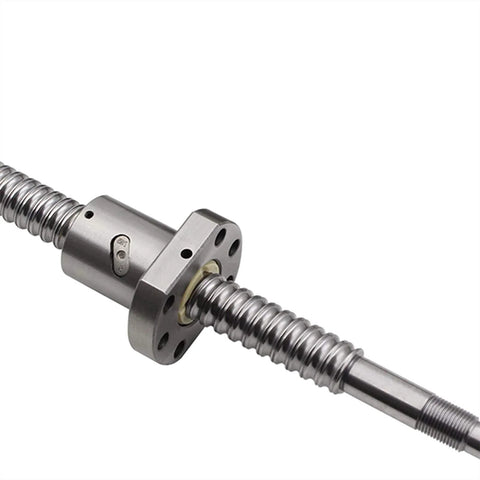

This SFU1605 1050mm ball screw kit is made for CNC machines and long-axis linear motion systems that need smooth travel, strong stiffness, and reliable accuracy over extended movement. It’s commonly used in CNC routers, automation equipment, and precision motion builds where low friction and consistent control are key. Pack size includes a complete matched setup with supports, coupler, and ball nut housing.

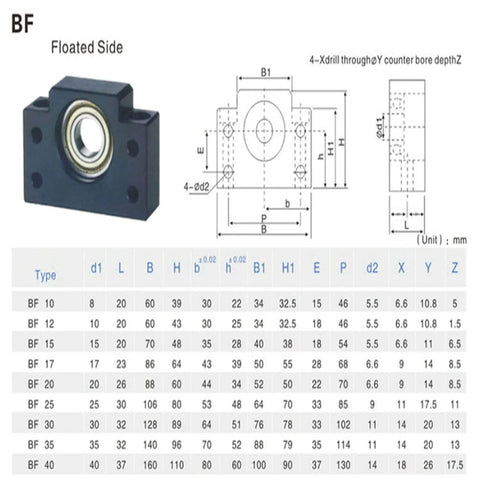

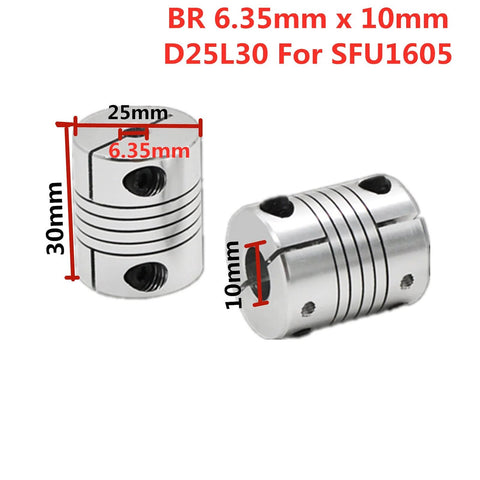

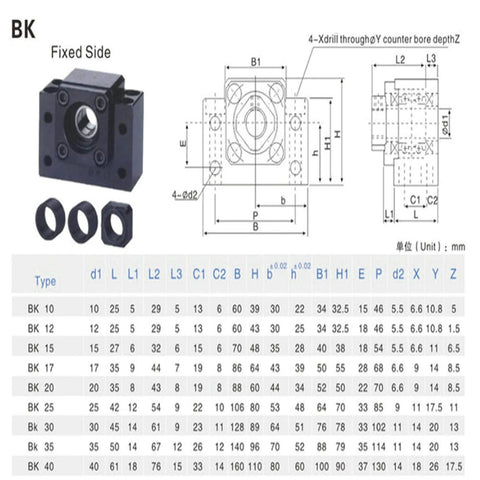

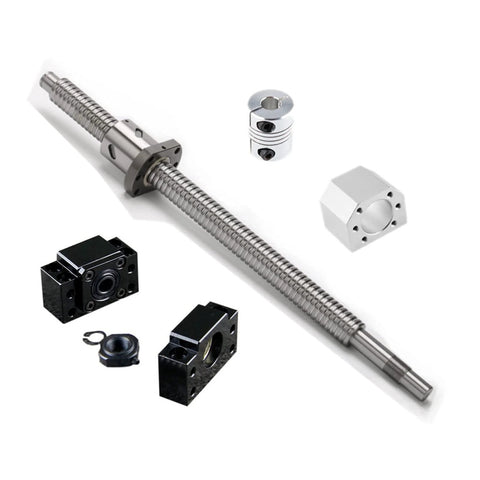

✅ Pack size: 1 ball screw, 1 ball nut with DSG16H housing, 1 BK12 support, 1 BF12 support, 1 coupler
✅ Ball screw model: SFU1605 / RM1605
✅ Nominal diameter: 16mm (0.630 in)
✅ Lead pitch: 5mm (0.197 in) per revolution
✅ Overall length: 1050mm (41.30 in) including end machining
✅ Precision grade: C7
✅ Rolled thread with shiny wear-resistant surface
✅ Minimum starting torque for easy motor startup
✅ Compact design for simple mounting and removal
✅ Matched ball nut and screw for stable accuracy

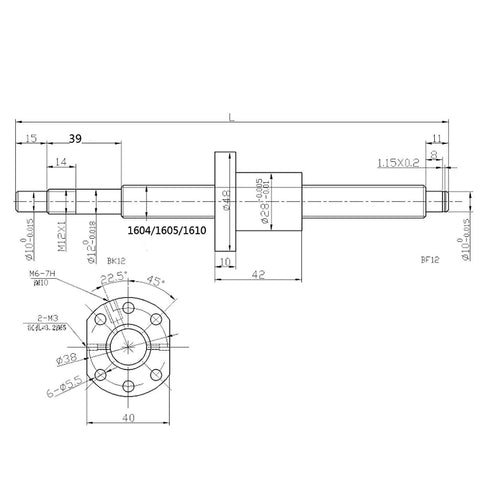

Dimensions
Diameter 16mm (0.630 in)
Lead 5mm (0.197 in)
Overall Length 1050mm (41.30 in)

This long-travel SFU1605 setup delivers clean linear motion, reduced friction, and dependable positioning for extended CNC axes and automation systems.

💡 Why are long-travel C7 precision ball screws used in high-accuracy CNC motion?
Long ball screws are designed to keep motion smooth and positioning consistent across large travel distances.

• Rolling ball contact lowers friction and drive power needs

• Matched nut assemblies help control backlash and alignment

• Low starting torque supports smoother acceleration and deceleration

• Wear-resistant surfaces extend service life under continuous motion

A strong option when you want smooth long-range travel, steady accuracy, and reliable performance in CNC and precision automation applications.
