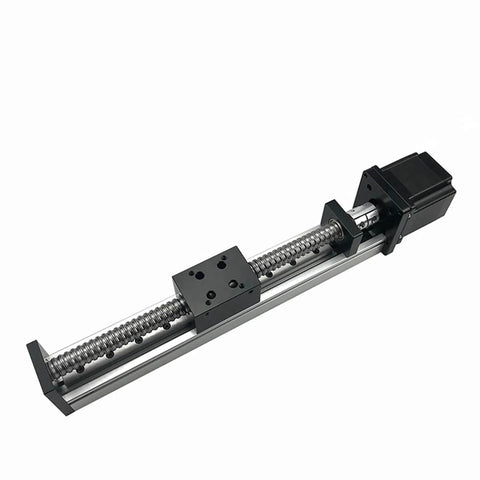

SFU1605 linear slide table with 300mm stroke, single rail ball screw CNC actuator with stepper motor for automation rigs, 3D printer motion systems and precision positioning stages

SFU1605 Linear Slide Table with 300mm Stroke - Single Rail Ball Screw CNC Actuator for Automation Rigs and Precision Positioning

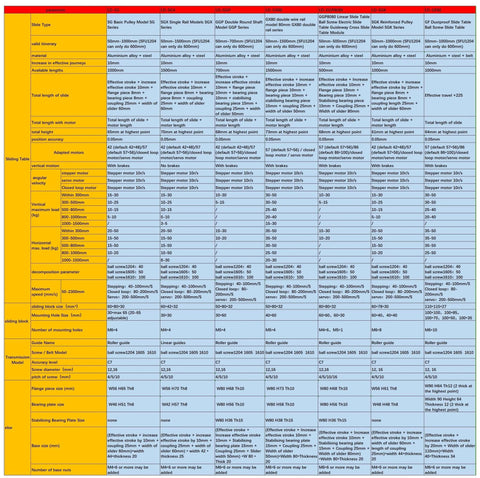

✔️ complete slide table assembly; Model: SGX single linear rail slide table

✅ Pack size: 1 complete slide table assembly
✅ Model: SGX single linear rail slide table
✅ Ball screw type: SFU1605
✅ Screw diameter: 16mm
✅ Lead per revolution: 5mm
✅ Effective stroke: 300mm (11.82in)
✅ Custom stroke range: 50mm to 1500mm
✅ Max custom length supported: up to 2900mm
✅ Horizontal load capacity: 50kg
✅ Vertical load capacity: 25kg
✅ Positioning accuracy: 0.05mm
✅ Material: aluminum alloy and steel
✅ Motor speed: stepper motor 10r/s

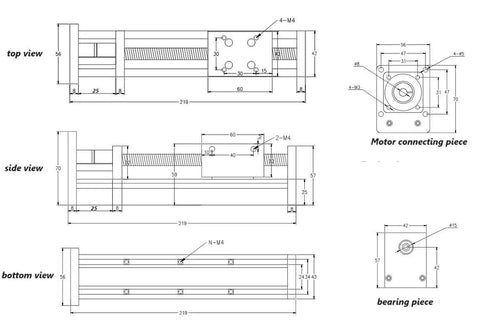

✅ Slider size: 60 x 42 x 32mm
✅ Slider mounting hole spacing: 30 x 30mm
✅ Extra protection travel: +10mm buffer stroke
✅ Total length formula: stroke + 10mm buffer + 8mm flange + 8mm bearing + 25mm coupling + 60mm slider + motor length

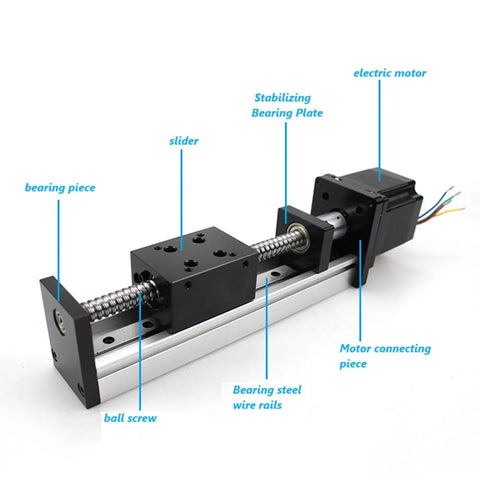

✅ Main parts included: motor, coupling, stabilizer bearing, slider, steel guideway, base, ball screw, bearing plate

💡 What is a ball screw linear slide table used for in precision automation and CNC systems?

This section provides quick, practical insights into how these motion platforms support accurate positioning in real-world setups.

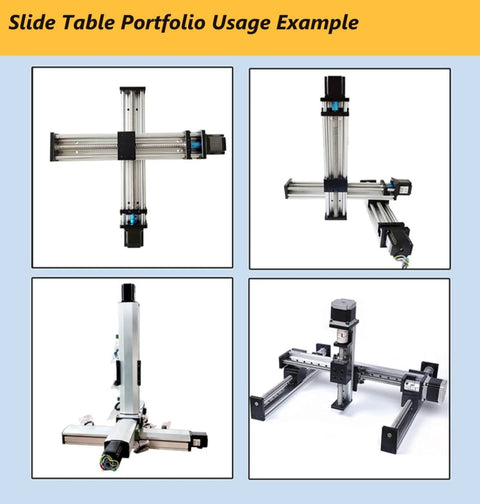

• In CNC machines, automation rigs, 3D printers, and precision positioning stages, it delivers smooth travel and repeatable accuracy.
• The SFU1605 screw uses a 16 mm diameter ball screw with a 5 mm lead, translating motor steps into controlled linear motion with minimal backlash.
• The single-rail design keeps the footprint compact while delivering sturdy load handling for day-to-day operation.
• 0.05 mm positioning accuracy enables tight tolerances in demanding positioning tasks.

This configuration is handy for reliable, high-precision automation and repeatable motion in compact work cells.
