SFU1605 NUW Ball Screw With Nut And End Machining, 16mm Diameter, 5mm Lead, 500mm Length, GCr15 Steel Construction, C7 Precision, Rolled Thread, Low Noise, High Precision CNC Linear Drive for Milling and CNC Routers

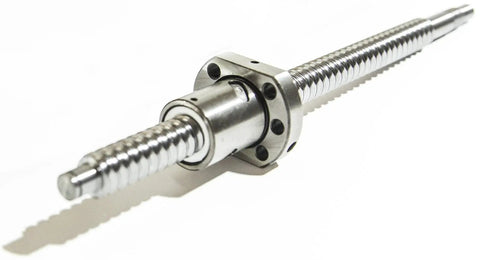

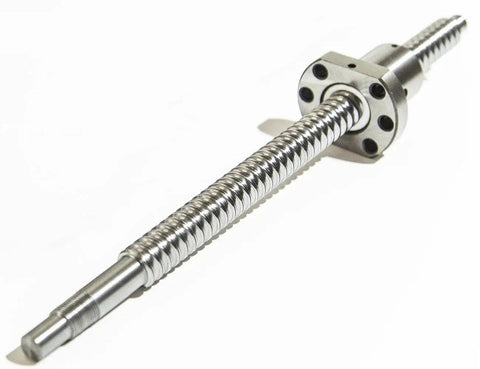

SFU1605 Ball Screw Kit with Nut, 16x5mm, 500mm Length
✔️ Diameter 16mm, Lead 5mm, Length 500mm; 1 ball screw + 1 nut

Specifically, this SFU1605 NUW ball screw kit includes 1 ball screw and 1 nut with end machining, designed for CNC and DIY projects. It’s used in precision linear motion systems to convert rotary motion to linear with minimal backlash. Typical applications include CNC routers, 3D printers, and test benches.

✅ Diameter: 16mm
✅ Lead: 5mm
✅ Length: 500mm
✅ Material: GCr15 steel
✅ Accuracy: C7 grade
✅ Includes: 1 ball screw and 1 nut

💡 What is a ball Screw with nut used for in precision CNC and linear motion systems?

A handy guide to why this setup is a smart choice for accurate motion.

- Converts rotary motion to linear motion with low friction

- Provides anti-backlash and high stiffness for repeatable moves

- Works well in CNC routers, milling setups, and DIY benches
