SFU1610 CNC Ball Screw 1016mm 40in with Anti Backlash Nut for BK12 BF12

SFU1610 CNC Ball Screw 1016 mm with Anti Backlash Nut and Machined Ends
✔️ 16 mm diameter precision ballscrew for CNC and linear motion systems

This linear motion ball screw set is built for CNC machines and automation projects that need smooth travel and accurate positioning. It includes a precision SFU1610 screw with an anti backlash nut and standard end machining for BK12 and BF12 bearing supports, making it ready for direct installation in motion assemblies.

✅ Pack size includes 1 ball screw and 1 ball screw nut
✅ Model SFU1610 RM1610
✅ Ball screw diameter 16 mm
✅ Total length 1016 mm
✅ Thread length about 951 mm
✅ Travel length about 899 mm
✅ Lead 10 mm with 5 mm pitch
✅ Precision grade C7
✅ Anti backlash nut for higher accuracy and longer service life
✅ Reduced friction design for low starting torque
✅ Minimal heat generation during operation
✅ Supports high speed travel and micro feeding motion

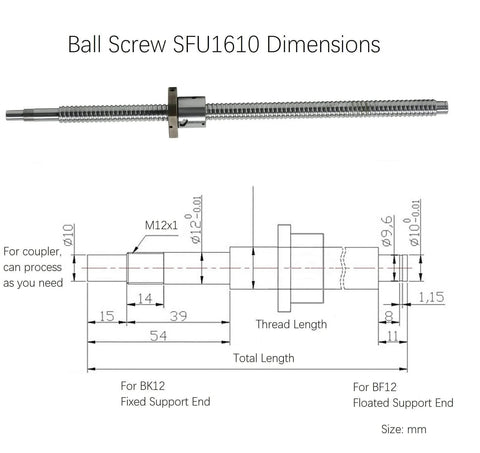

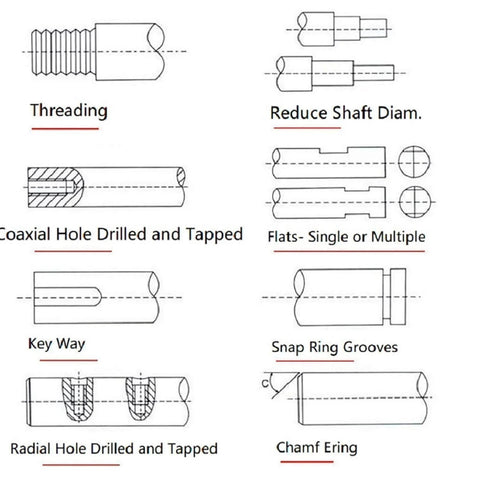

✅ Standard end machining for BK12 BF12 bearing blocks
✅ Right hand thread as default

💡 Why use an anti backlash CNC ball screw for precision linear motion systems?
It improves positioning accuracy while keeping motion smooth and efficient.

• Anti backlash nut reduces lost motion in CNC and automation drives

• Rolling ball design lowers friction and driving power requirements

• Stable movement helps improve cutting accuracy and repeatability

• Works well for routers, mills, laser machines, and linear stages

This SFU1610 ball screw assembly is a handy choice for CNC and automation builds that need dependable motion control, low friction travel, and consistent positioning over long stroke lengths.
