SGL45HTE NB 45mm 42.5" Rail Guideway System Flanged Slide Unit Linear Motion
$2,820.97 CAD
$3,196.47 CADyou save $375.50 CAD
SKU: SGL45HTE-NB
UPC: 00193019130872
UPC: 00193019130872
Diameter Shaft: 45mm
Rail length: 42.5" Inch
Dynamic load rating: 74.7 KN
Static load rating: 101 KN
High repeatability and smooth running performance
Rail length: 42.5" Inch
Dynamic load rating: 74.7 KN
Static load rating: 101 KN
High repeatability and smooth running performance
| We don't Offer International Shipping |
| SGL45HTE NB 45mm Linear Guideway System 42.5" Inch length Rail |

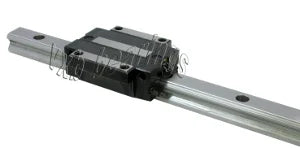

Complete SGL45HTE NB linear guideway system with one Flanged Square block installed, Diameter Shaft is 45mm and Rail long is 42.5" Inch. |
| Rail Name |
Rail Dimensions (mm) | Block Name |
Block Dimensions (mm) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | W | B | L1 | L2 | L3 | L4 | P1 | P2 | S1 | D | T | B | E1 | E2 | T1 | H1 | C | DXGXH | N | P | ||
| SGL45 | 60 | 37.5 | 120 | 139 | 102 | 147.5 | 148 | SGL45HTE | 100 | 80 | M12 | 10.5 | 15 | 50 | 15 | 15 | 10 | 36.5 | 45 | 14X20X17 | 22.5 | 105 |
