Single 3-Phase TEFC C-Face Motor VEM3546T, 1 HP 1760 RPM, 143TC frame, 208-230/460V 60Hz, sealed ball bearings, Class F insulation, 1.15 service factor, continuous duty, CSA listed

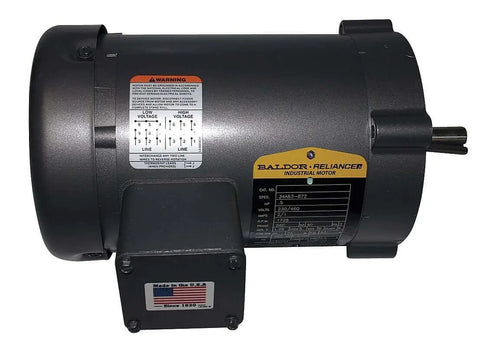

Single 3-Phase TEFC C-Face Motor 1 HP 1760 RPM VEM3546T
✔️ 208-230/460V 60Hz, 143TC frame, C-face, sealed ball bearings, Class F

This single motor is a general purpose three-phase TEFC unit used for pumps, fans, compressors and conveyor drives in industrial and light industrial settings. Sold as one unit.

✅ General purpose three-phase TEFC enclosure for dusty environments
✅ 1 HP output, nameplate 1760 RPM, continuous duty 1701-1800 RPM range
✅ 143TC C-face mounting for direct-coupling and pump drives
✅ 208-230/460V AC, 60 Hz; full load amps 3 / 1.5 A
✅ Sealed ball bearings with steel frame and gold finish color
✅ Insulation Class F, service factor 1.15, no thermal protection on nameplate
✅ Nominal efficiency 85.5% with CSA and UR approvals for safety compliance
✅ CW/CCW shaft rotation, max ambient 40°C, ball motor bearings for long life

💡 What are the benefits of using a TEFC C-face three-phase motor for industrial pump and conveyor drives? A TEFC C-face three-phase motor is handy when you need steady torque, protection from contaminants, and easy mounting for direct-coupled equipment. Common advantages include: - Dust and light moisture protection via totally enclosed fan cooled housing, ideal for sealed ball bearings - Reliable continuous duty performance with 1.15 service factor and Class F insulation for higher temperature tolerance - Simple direct-coupling with C-face 143TC frame and CW/CCW rotation for pumps, fans, conveyors, and gear drives - Good efficiency and safety listings: 85.5% nominal efficiency with CSA and UR certifications
