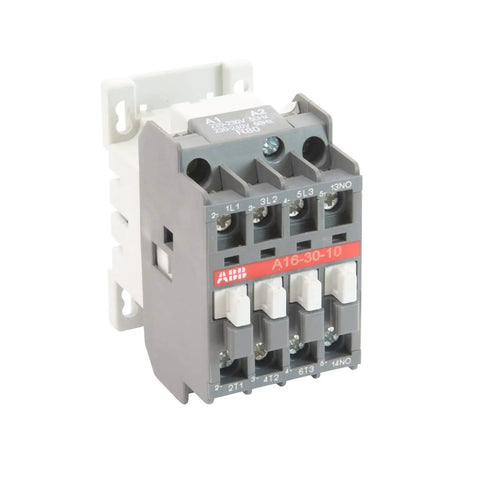

Single 3-Pole Non-Reversing Contactor A16-30-10-80, 220-240 VAC Coil, 17 A 3-Phase / 30 A 1-Phase, 10 hp at 460/480 VAC, Snap-On DIN-Rail Mount, Screw Terminals, NEMA 00-3, CE CSA UL, ABB

Single 3-pole contactor, 220-240 VAC coil
✔️ 17 A 3-phase / 30 A 1-phase, 10 hp, Snap-On DIN-Rail

This single unit non-reversing contactor is used for switching and controlling industrial 3-phase motors and power circuits, ideal for motor starters and control panels.

✅ Model: A16-30-10-80, single contactor
✅ Coil Voltage: 220-240 VAC, 50/60 Hz
✅ Full Load Current: 17 A (3-phase), 30 A (1-phase)
✅ Power Ratings: 10 hp @460/480 VAC 3-phase; 5 hp @230/240 VAC 3-phase; 15 hp @575/600 VAC 3-phase
✅ Poles: 3, Contact Form: 1 NO, Terminal Type: Screw
✅ Enclosure Type: NEMA 00 - 3, Mounting: Snap-On DIN-Rail
✅ Dimensions: 2.91 in H x 1.73 in W x 2.91 in D
✅ Standards/Approvals: CE Certified, CSA LR56745, IEC Approved, UL E39231
✅ Application: For controlling 3-phase motors and power circuits up to high AC and DC voltages

💡 What is a 3-pole motor contactor used for in industrial motor control applications? This handy component switches heavy AC loads and protects motor circuits while allowing remote control. - Controls and isolates motor power in motor starters and control panels for safe operation - Supports 220-240 VAC coils and handles full load currents for 3-phase and single-phase setups - Snap-on DIN-rail mounting and screw terminals make panel wiring and maintenance quick and tidy - Meets CE, CSA, IEC and UL approvals for industrial electrical installations
