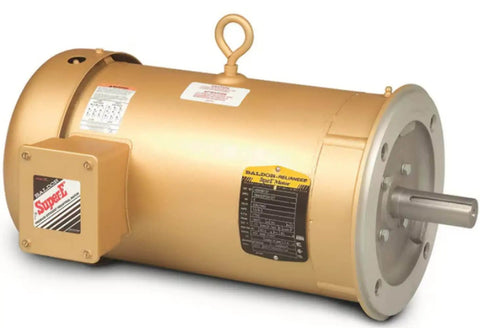

Single 5 HP 3-Phase TEFC Electric Motor 230/460V 60Hz 3470 RPM, 184TC Frame F1 Mounting, Reversible Rotation, NEMA Premium Efficiency, 3630M Insulation Industrial AC Motor

Single 5 HP 3-Phase TEFC Industrial AC Motor
✔️ 230/460V, 60Hz, 3470 RPM, reversible rotation, 184TC TEFC enclosure

This is a single 5 HP three-phase TEFC AC motor commonly used to drive pumps, fans, compressors, and conveyor systems in industrial and commercial settings.

✅ Power: 5 HP - 3 phase
✅ Voltage: 230/460V, Frequency: 60 Hz
✅ Speed: 3470 RPM, Reversible rotation
✅ Frame: 184TC, Mounting: F1, Enclosure: TEFC
✅ NEMA Premium efficiency, Insulation class: 3630M
✅ Sealed ball bearings standard; ceramic bearing upgrade available

💡 What is a 3-phase TEFC motor used for in industrial pumps and conveyor systems? A 3-phase TEFC motor is a handy option for steady, continuous-duty power in dirty or wet environments. - Ideal for centrifugal pumps, axial and radial fans, compressors, and conveyor drives where low-maintenance sealed ball bearing performance is important. - Works well where compact drives must interface with gearboxes or linear slide unit assemblies. - Choose NEMA Premium TEFC motors when you need reliable, long-life operation and the option for ceramic-bearing upgrades.
