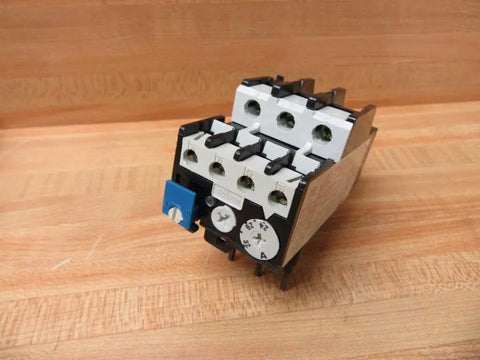

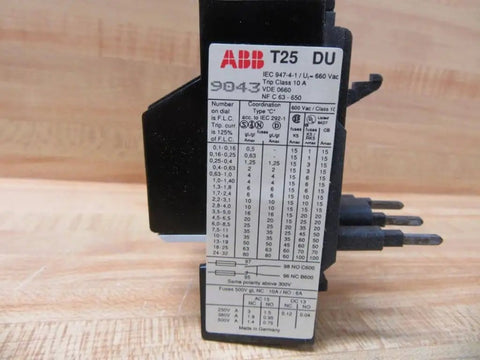

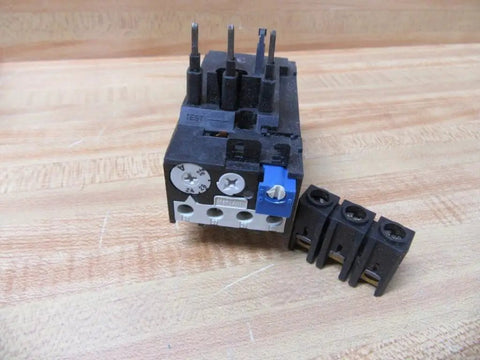

Single overload relay T25DU32 24-32 A 3-pole thermal motor protector Class 10 manual or automatic reset panel mount screw terminals UL CSA compatible B9-B75 contactors

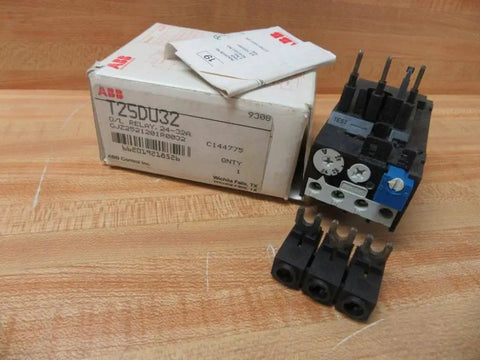

Single T25DU32 24-32A 3-pole thermal relay
✔️ 24-32 A motor FLA, Class 10, manual/auto reset, 3 poles

This single unit thermal overload relay protects 1-phase motors in control panels and pairs with B9-B75 contactors for panel mount installations. Commonly used in industrial motor starters with UL and CSA approvals.

✅ Amps: 24-32 A motor FLA range, 3 poles, Trip Class 10
✅ Reset type: Manual or automatic, ambient temperature compensated
✅ Terminal type: Screw, Mounting: Panel; Compatible with B9-B75 contactors
✅ Approvals: UL and CSA; Overall size 1.7 in W x 3.7 in D x 3.04 in H
✅ Ideal for motors that use sealed ball bearing or ceramic parts and for linear slide unit applications

💡 What is an overload relay used for in motor control systems? An overload relay stops a motor before heat damage occurs by sensing prolonged overcurrent. - Protects motors from sustained overloads, stalled rotor conditions and heat buildup - Works with contactors and other starter parts to safeguard bearings, seals and ceramic components - Handy choice for pump drives, conveyors and linear slide unit assemblies where reliable trip protection is needed
