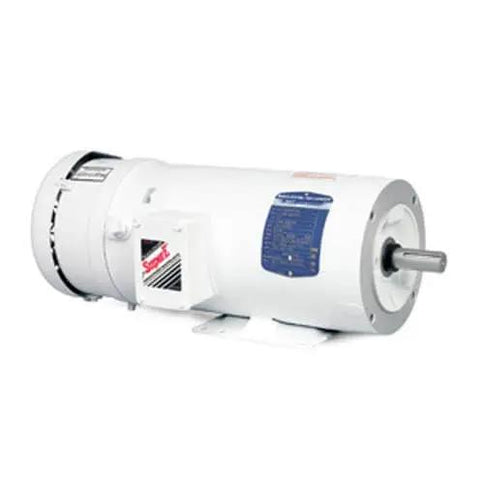

Single washdown brake motor (painted), 5 HP, 3-phase, 1800 RPM, 208-230/460 V, 184TC frame, TEFC enclosure, 60 Hz, footed/C-face mount, IP55 protection, Class F insulation, stainless hardware

Single washdown painted brake motor, 5 HP TEFC
✔️ 208-230/460 V, 1800 RPM, 184TC frame, IP55, Class F insulation

This painted washdown brake motor is a single industrial unit used in food processing and other high-pressure washdown environments, delivering reliable braking and corrosion resistance where sanitation and frequent cleaning are required.

✅ 5.00 hp, 3-phase, 1800 rpm, continuous duty
✅ Voltages 208-230/460 V, 60 Hz; FLA 13.9@208V, 13.4@230V, 6.7@460V
✅ 184TC frame, TEFC enclosure, footed/C-face mount, service factor 1.15
✅ IP55 protection, Class F insulation, automatic thermal protection
✅ Moisture sealant on bolt heads, neoprene gaskets, 300-series stainless hardware & shaft
✅ Easily removable condensation drain plugs, epoxy finish, brakes wired in conduit box
✅ Shaft 1.13 in (28.7 mm), overall length 23.30 in (591.8 mm), weight 111.0 lb
✅ Compatible with sealed ball bearing setups; supports ceramic bearing upgrades and linear slide unit assemblies

💡 How does a washdown brake motor protect equipment in food processing environments? A handy washdown brake motor uses seals, stainless components and drainage to keep moisture out. - Sealed interfaces, neoprene gaskets and sealed ball bearing strategies reduce water ingress and contamination risk - 300-series stainless hardware and shaft plus epoxy finish resist corrosion during high-pressure cleaning - IP55 rating, condensation drain plugs and conduit-boxed brake wiring keep internal components drier - Thermal protection and brake wiring arrangements improve safety and uptime for frequent stop-start cycles
