Six Channel Slip Ring With Carbon Brush Conductive Ring, 22Mm Diameter, 250Mm Wire Length, 2A Rating, Gold Contacts, AWG28 Silver Plated Teflon UL Wire, 50 RPM Performance, Ideal For Rotating Machinery, Custom Automation Projects

Six-Channel Slip Ring 1-Unit Pack with Gold Contacts
✔️ 6-channel, 2A rating, 22mm dia, 250mm wire, 50 RPM

This six-channel slip ring provides reliable, maintenance-friendly electrical connections between stationary and rotating components. It's a go-to choice for automation projects, robotics, CNC machines, conveyors, and any rotating machinery that needs steady power and signal transfer without tangled wires.

✅ Speed: 50 RPM
✅ Channel count: 6
✅ Rated voltage: 240 VAC/DC
✅ Rated current: 2 A

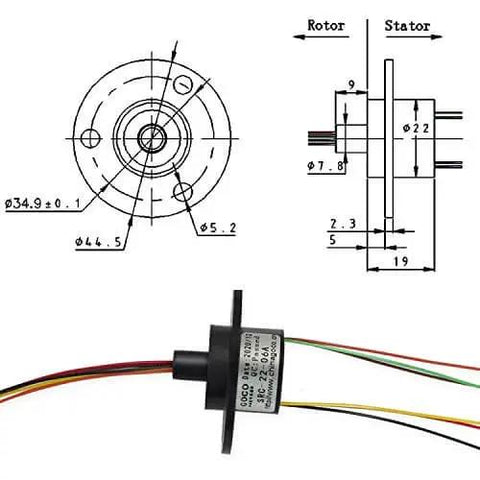

✅ Diameter: 22 mm
✅ Wire: AWG28 silver-plated Teflon UL
✅ Wire length: 250 mm
✅ Contact material: Gold
✅ Dielectric withstand between channels: ≥300 V 50 Hz
✅ Insulation resistance: 300 MΩ/300 VDC
✅ Operating temperature: -30 °C to +80 °C
✅ Shell material: Engineering plastics
✅ Lifespan: ≥5 million rpm

💡 What is a slip ring used for in rotating machinery and custom automation projects?

A handy device that passes electrical power and signals across a rotating interface without tangled wires. - Handy for continuous power and data transfer in rotating machinery - Great for robotic arms, CNCs, conveyors, and automated test rigs - 240 VAC/DC rated, 2 A with gold contacts for reliable signal - Long service life in industrial environments
