Six Layer Single Phase Coil Wire Winding Mold For Electrical Machines Plastic Winding Tool For 0.55 To 3KW Single Phase Motors Winding Without Welding Concentric Coils In Each Slot For Precise Stator Winding

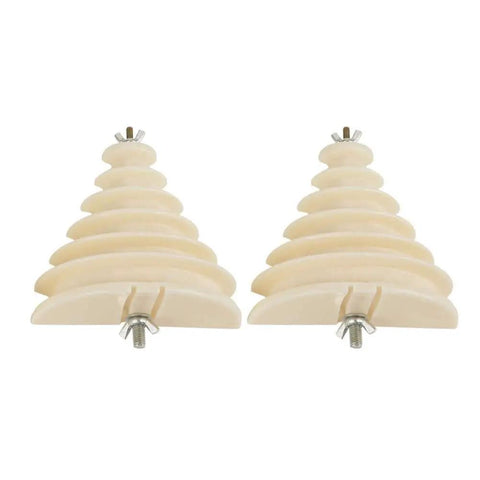

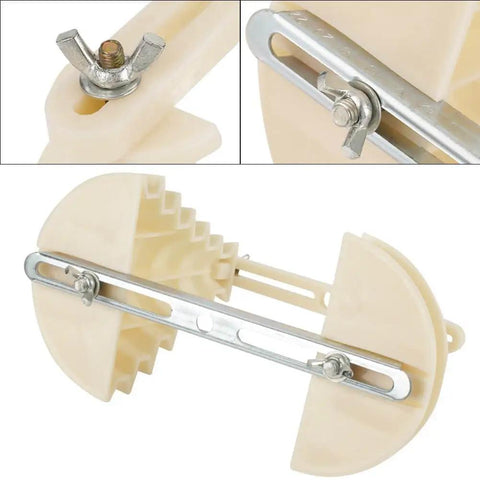

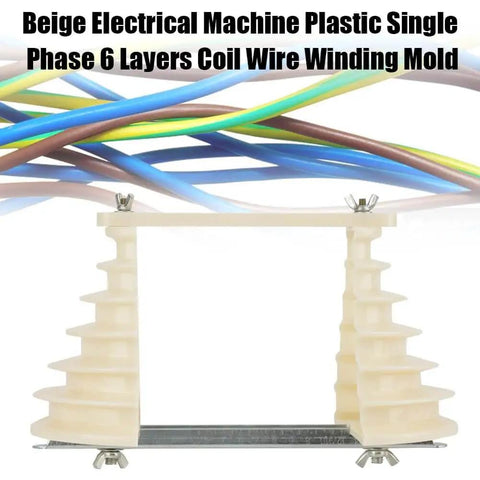

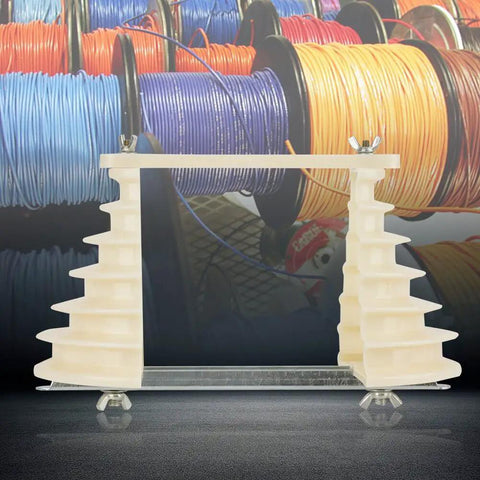

Six-Layer Coil Winding Mold for Precise Stator Winding
✔️ Six-layer winding mold for 0.55-3KW single-phase motors

This six-layer coil winding mold is designed for precise stator winding of 0.55-3KW single-phase motors. It guides concentric coils in each slot and enables winding without welding, making motor repairs and maintenance faster and more reliable in electrical machine shops.

✅ Layer Number: 6 layers
✅ Slot width: 9mm (0.35in)

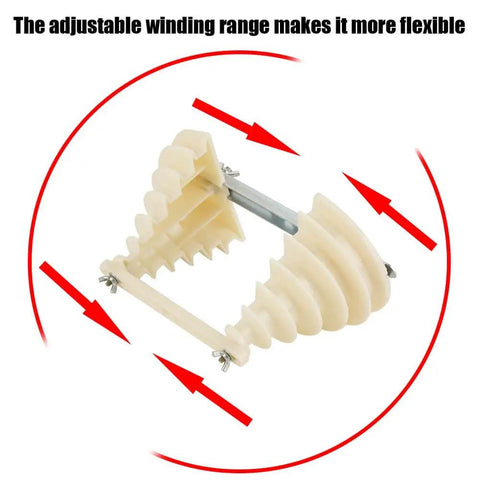

✅ Max adjustment diameter: 220mm (8.66in)

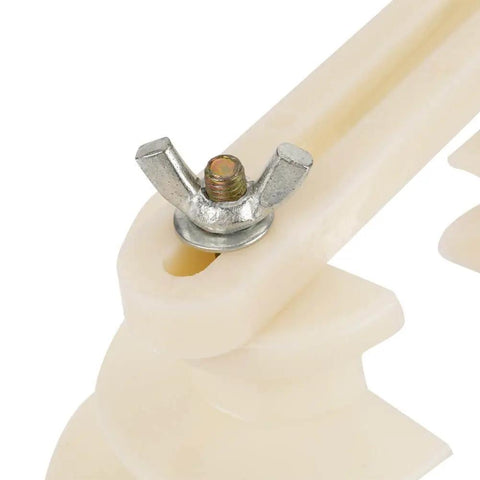

✅ Material: Plastic, Metal; Color: Beige

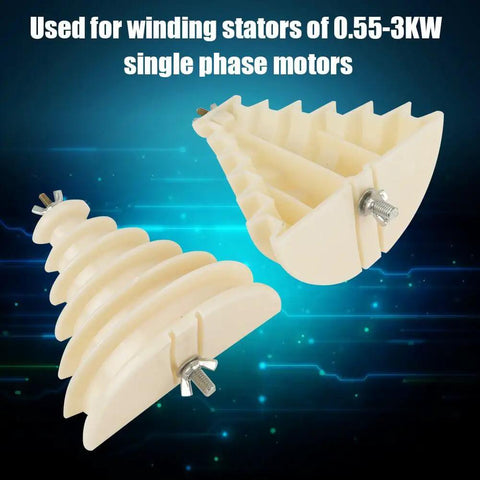

✅ Fit for: 0.55-3KW single-phase motor
✅ Weight: 376g

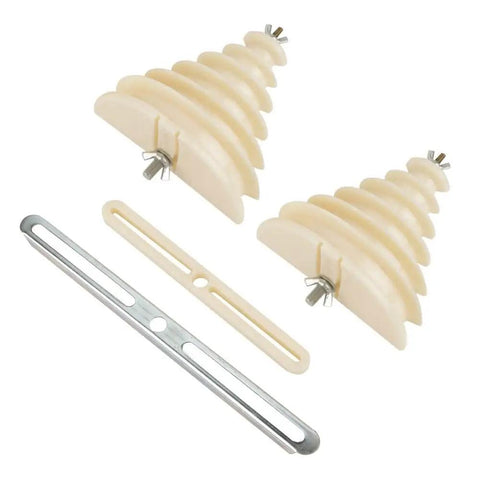

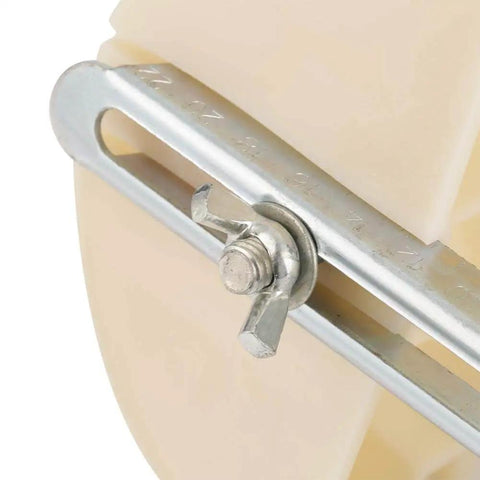

✅ Package includes: 1 x Coil Wire Winding, 1 x Metal Fixting Base

💡 What is a coil winding mold used for in stator winding of single-phase motors?

This handy tool helps technicians get precise concentric coils in each slot without welding, speeding up repairs.

• Accurate slot-to-slot coil alignment for smooth motor performance
• Supports winding 0.55-3KW single-phase motors in repair work
• Lightweight and durable for field and shop use
• Helps improve winding consistency and reduce error
