SKF 22216 EK/C3 spherical roller bearing with tapered bore delivers high load capacity, smooth rotation, reduced vibration, and extended life for demanding machinery, ensuring reliable operation and easier maintenance

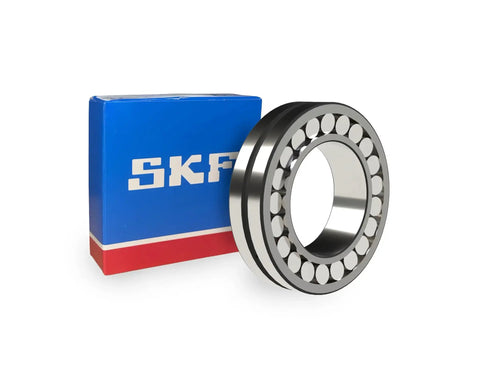

High-Performance 22216 EK/C3 Spherical Roller Bearing
✔️ Single bearing, 22216 EK/C3, tapered bore, roller type

This SKF 22216 EK/C3 spherical roller bearing with a tapered bore is built to handle heavy radial loads and shaft misalignment in large industrial equipment such as conveyors, gearboxes, and crushers.

✅ Bore diameter: 3.15 in
✅ Outside diameter: 5.512 in
✅ Width: 1.299 in
✅ Basic dynamic load rating: 54,629 lbf
✅ Basic static load rating: 60,698 lbf
✅ Reference speed: 4,300 r/min
✅ Limiting speed: 6,000 r/min
✅ Radial internal clearance: C3
✅ Cage: Sheet metal
✅ Sealing: None
✅ Relubrication feature: With
✅ Weight: 4.513 lb
✅ Pack size: 1 (single bearing)
✅ Bore type: Tapered 1:12
✅ Number of rows: 2
✅ Performance class: SKF Explorer
✅ Tolerance: Normal (dimensions), P5 (run-out)

Designed for high load capacity and precise alignment, this bearing is a trusted choice for heavy machinery in industrial settings, where reliability under continuous operation matters most.

💡 What is a pillow block bearing used for? Pillow block bearings provide handy shaft support and help keep alignment in rotating equipment. - Handy for conveyors, presses, and mixers - Useful for handling heavy radial loads with misalignment - Simplifies maintenance with relubrication options
