Slot Reflective Photoelectric Sensor Switch 940nm Infrared Module Plug And Play For 5 To 24V DC Open Collector Output NPN/PNP 50mA 1kHz Response Compatible With EE-SX670 To EE-SX674 Series

Reflective Slot IR Sensor Switch, 940nm, 5 to 24V DC, 1 pc
✔️ Output: open collector (NPN/PNP), 50mA, 1kHz, IP50, 5 to 24V DC

This compact, slot-type reflective photoelectric sensor detects opaque objects passing through a narrow 5 mm slot. It’s a handy choice for inline sensing on packaging lines, printers, conveyors, and automation setups where contactless detection is key.

✅ Slot width: 5 mm
✅ Detection object: opaque 2x0.8 mm or larger
✅ Output: open collector (NPN/PNP)
✅ Supply voltage: 5 to 24V DC
✅ Output current: up to 50 mA
✅ Response frequency: 1 kHz
✅ Protection: IP50, -25 to 55°C, 5 to 85% RH

💡 What is a slot reflect photoelectric sensor used for in automation systems? This handy device is designed to detect items passing through a narrow slot without contact, making it ideal for inline counting, safety interlocks, and position sensing on production lines.

• Detects objects passing through a slot for non-contact monitoring

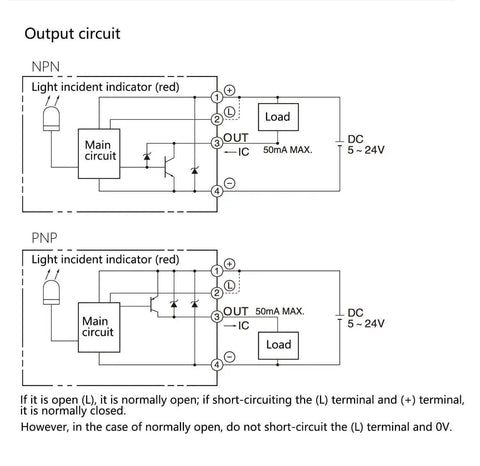

• Provides NPN/PNP open collector outputs for easy wiring
• Operates on 5 to 24V DC with a 1 kHz response
• IP50 rated enclosure suitable for typical factory settings
