SLTC 375 Spring Loaded Stainless Steel T Bolt Clamp SAE 92 For 3.5 Inch ID Hose Polished Finish 1 Piece Fits 3.75 To 4.06 Inch Range 95 To 103 Mm Provides Uniform Sealing Pressure Prevents Hose Extrusion

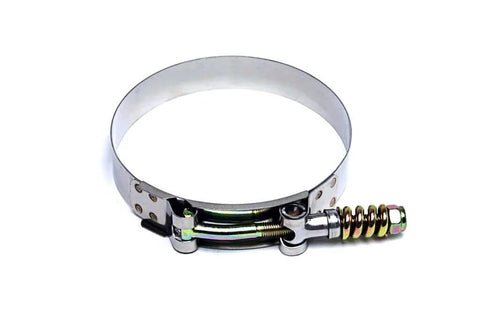

Spring-Loaded Stainless T-Bolt Clamp SAE 92 for 3.75-4.06 in
✔️ 3.75-4.06 in range, nominal 4 in, 3/4 in band, 1 Pc

This HPS stainless steel spring-loaded T-Bolt clamp (SAE 92) fits 3.5 in ID hoses (89 mm ID) and spans 3.75-4.06 in outside diameter (95-103 mm). It's a solid choice for high-vibration environments in CAC, aircraft, automotive, marine, and industrial hose systems.

✅ 3/4 in wide 300 Series stainless steel band and trunnion
✅ Size range 3.75-4.06 in (95-103 mm) for 3.5 in ID hose
✅ Floating bridge and rolled edges protect soft hoses
✅ Zinc plated T-bolt, nut, springs; nylon insert lock nut
✅ Max torque 75 in-lbs; reusable spring-loaded design
✅ Applications: CAC, aircraft, automotive, marine, industrial

💡 What is a spring loaded T-bolt clamp used for in high-vibration hose systems?

It's handy for maintaining a tight seal as hoses expand and contract with heat and load.

• Handy for sealing in air intake, cooling lines, and marine hose assemblies
• Maintains uniform pressure to prevent leaks during vibration
• Reusable design keeps service costs down
