SMA13GUU NB 13mm Slide Bush Bushings Miniature Motion Linear Bearing
$110.39 CAD
$149.02 CADyou save $38.63 CAD
SKU: Kit21187
UPC: 00193019124925
UPC: 00193019124925
Item: SMA13GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 13mm
Quantity: One Bearing
Dynamic load rating Cr: 510 N
Type: Linear Ball Bushing
Shaft Diameter: 13mm
Quantity: One Bearing
Dynamic load rating Cr: 510 N
| SMA13GUU NB Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

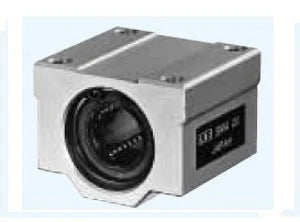

SMA13GUU NB Block Slide Unit, The inner diameter is 13mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Outer Dimensions | Mounting Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | T | B | C | K | S1 | S2 |
| 15 | 22 | 44 | 39 | 30 | 24.5 | 8 | 33 | 26 | 5.5 | M5 | 4.3 |
