SMT8UUE NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
UPC: 00193019120736
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 8mm
Quantity: One Bearing
SMT8UUE Linear Slide Bush
✔️ Two Side Cut Pilot End Flanged Type - Made in Japan
The SMT8UUE is a high-precision linear flange bushing from NB (Nippon Bearing), built for systems demanding accurate motion and solid mounting. Designed with pilot ends and dual side cuts, it’s ideal for compact installations with stable guidance and long-lasting sealed performance.
✅ Inner Diameter (dr): 8mm
✅ Outer Diameter (D): 15mm
✅ Length (L): 24mm
✅ Pilot Flange Diameter (Df): 32mm
✅ Flange Width (W): 21mm
✅ Retainer Material: Steel
✅ Closure: Sealed
✅ Country of Origin: Japan
✅ Dynamic Load Rating Cr: 274 N
✅ Static Load Rating Cor: 392 N
✅ Pack Size: 1 Bearing

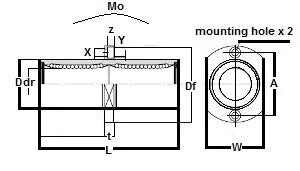

Dimension Table:
| dr (mm) | D (mm) | L (mm) | Df (mm) | W (mm) | t (mm) | A (mm) | X × Y × Z (mm) |
|---|---|---|---|---|---|---|---|
| 8 | 15 | 24 | 32 | 21 | 5 | 24 | 3.5 × 6 × 3.1 |
💡 What are pilot-end linear bushings used for in motion systems?
They help simplify mounting while improving precision:
-
Pilot ends assist in accurate centering during installation
-
Flanged design adds rigidity and alignment support
-
Seals reduce wear and block contaminants
-
Perfect for CNC machines, automation rails, and 3D printers
This one’s proudly made in Japan, solid pick when you're building for accuracy and reliability!
